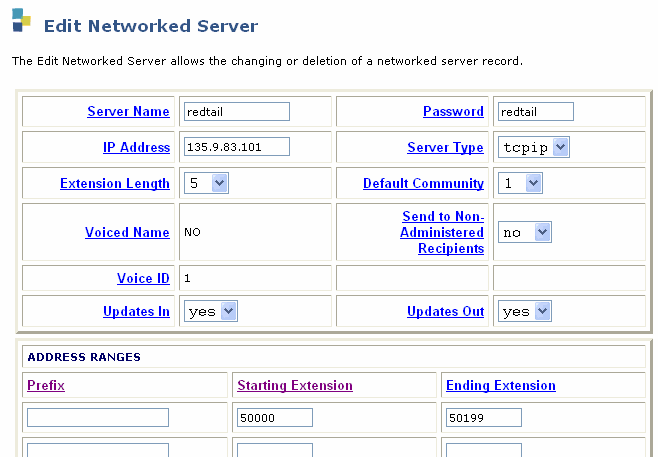

Edit Networked Server Page

Server Administration -> Networked Servers -> Edit the Selected Networked Server



Table: Field Definitions: Local Machine Profile Screen, Page 2

Field	Valid Input	Description
Server Name	1 to 8 alphanumeric characters A dash ('-') An underbar ('_'). If this is a remote server name, you can enter 1 to 10 alphanumeric characters.	Use this field to enter the unique name of the server you want to add or modify. The server name cannot contain a period, or begin with a digit. Use of the server name "fax" is reserved and not permitted.
IP Address	Display-only	The IP address of the local Communication Manager server.
Password	From 5 to 10 alphanumeric characters; can include dashes or underscores	Enter the remote password that machines must use to establish networking connections to this local Communication Manager server.
Server Type	TCPIP	Use this drop-down list to select the server type
Extension Length	As defined on the Switch Link Admin page	Use this drop-down list to select the extension length for all subscribers on this networked server. This number must match the number of digits in the extension numbers defined in the fields under Address Ranges.
Default Community	The default for this field is 1.	Use this drop-down list to select the default community number for this networked server. The community determines the subscriber sending restrictions. The default community is used for messages received from this networked server without the originator's community number.
Voice Name	YES indicates a voiced name is recorded. NO indicates a voiced name is not recorded.	This field indicates whether a voiced name for this server is recorded.
Send to Non-Administered Recipients	If you select Yes, the Messaging system will attempt to deliver messages to non-administered remote recipients. If you select No, the Messaging system will not attempt to deliver messages to non-administered remote recipients.	Use this drop-down list to enable or disable message delivery to non-administered remote recipients.
Voiced ID	Internally assigned identifier for the voiced machine name.	The administrator uses this value when recording the name for the machine.
Updates: In?	y = yes n = no	If you enter y, this local Communication Manager server accepts updated subscriber database information from any remote Communication Manager server (the Updates In field must also be set to y on the remote Machine Profile screen setup on the local Communication Manager server for each remote Communication Manager server). If you enter n, the local Communication Manager server does not accept updates from any remote Communication Manager server, regardless of the entry on the remote Machine Profile screen. Set this field to y only after testing the network end to end during initial administration.
Updates: Out?	yes no	If you enter y, updates to subscriber database information for local subscribers are sent to a remote Communication Manager server (the Updates Out field must also be set to y on the remote Machine Profile screen set up on the local Communication Manager server for each remote Communication Manager server). If you enter n, updates are not sent to any remote Communication Manager server, regardless of the entry for this field on the remote Machine Profile screen. Set this field to yes only after testing the network end to end during initial administration.
Prefix	The prefix can be 0 to 21 alphanumeric characters in length. Total length cannot exceed 24 characters.	Use this field to enter the prefix digits for the ranges of telephone numbers for subscribers on this server. The prefix can be used to distinguish between server that have overlapping extension number ranges.
Starting Extension	The total length of the prefix and extension number cannot exceed 24 characters, and the ranges cannot overlap with another range if multiple address ranges are specified for this server.	Use this field to enter the starting extension numbers for the ranges of telephone numbers used by subscribers on this server. The number of digits in a extension number must match the entry in the Extension Length field for this server.
Ending Extension	The total length of the prefix and extension number cannot exceed 24 characters, and the ranges cannot overlap with another range if multiple address ranges are specified for this server.	The ending extension numbers for the ranges of telephone numbers used by subscribers on this server. The number of digits in an extension number must match the entry in the Extension Length field for this server.
Save		Select this button to add the new network server to the system or update the settings of an existing server.
Delete		Select this button to remove an existing server from the system.
Back		Select this button to return to the previous page.
