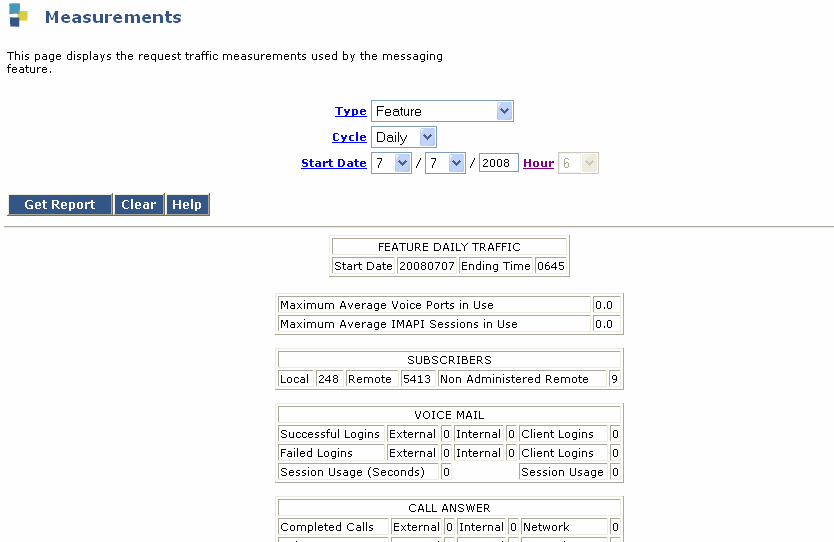

Measurements page; Feature Daily Traffic





Table: Field Definitions: Measurements page; Feature Daily Traffic

Field Name	Description/Procedure
Date:	The starting date for which traffic data was collected for the report. It is the date you entered on the command line or the current date if you did not specify a date.
Ending Time:	The time at which data collecting ended.
Maximum Average Voice Ports in Use:	The average number of ports that were in use simultaneously during the busiest hour of the day that you selected. See Interpreting Traffic Report Findings to analyze this information.
Maximum Average MCAPI Sessions in Use:	The average number of MCAPI sessions that were in use simultaneously during the busiest hour of the day that you selected. See Interpreting Traffic Report Findings to analyze this information.
SUBSCRIBERS
Local:	The total number of local subscribers who were administered on the messaging system at the end of the day being reported.
Remote:	The total number of remote subscribers who were administered on the messaging system at the end of the day being reported.
Non Administered Remote:	The total number of subscribers external to the messaging system (not administered) who sent mail to an administered messaging subscriber or to whom mail was sent by an administered messaging subscriber at the end of the day being reported.
VOICE MAIL
Successful Logins, External: Successful Logins, Internal: Successful Logins, Client Logins:	The number of successful login attempts that were made during the day reported. Login attempts were made by subscribers calling from: Telephones not administered (external) on the host switch Telephones administered (internal) on the host switch MCAPI interface (client logins)
Failed Logins, External: Failed Logins, Internal: Failed Logins, Client Logins:	The number of unsuccessful login attempts that were made during the day reported. Login attempts were made by subscribers calling from: Telephones not administered (external) on the host switch Telephones administered (internal) on the host switch MCAPI interface (client logins) Unsuccessful means that the messaging system did not allow the caller access to messaging operations. Denial to access could have been due to an unrecognizable password, login ID, or both, or because the caller hung up before completing the call.
Session Usage (Seconds):	The total number of seconds that messaging ports were in use for voice mail sessions during the day reported.
Session Usage:	The total number of seconds that MCAPI sessions were in use for voice mail sessions during the day reported.
CALL ANSWER
Completed Calls, External: Completed Calls, Internal: Completed Calls, Network:	The number of completed call answer telephone calls that were made to the messaging system during the day reported. Calls came from: Telephones not administered (external) on the host switch Telephones administered (internal) on the host switch Telephones networked with MCAPI sessions to the host switch These numbers include the times that the messaging system answered calls for subscribers, attendants, and bulletin boards.
Voice Components, External: Voice Components, Internal: Voice Components, Network:	The number of voice components that were included in call answer telephone calls made to the messaging system during the day reported. Calls came from: Telephones not administered (external) on the host switch Telephones administered (internal) on the host switch Telephones networked with MCAPI sessions to the host switch These numbers include the times that the messaging system answered calls for subscribers, attendants, and bulletin boards.
FAX Components, External: FAX Components, Internal: FAX Components, Network:	The number of Faxes that were sent to the messaging system during the day reported. Calls came from: Telephones not administered (external) on the host switch Telephones administered (internal) on the host switch Telephones networked with MCAPI sessions to the host switch These numbers include the times that the messaging system answered calls for subscribers, attendants, and bulletin boards.
Abandoned Calls, External: Abandoned Calls, Internal: Abandoned Calls, Network:	The number of times that a caller hung up after the mailbox greeting started to play, but before the beep, to leave a message. Calls came from: Telephones not administered (external) on the host switch Telephones administered (internal) on the host switch Telephones networked with MCAPI sessions to the host switch These numbers include the times the messaging system answered calls for subscribers, attendants, and bulletin boards.
Session Usage (seconds):	The total number of seconds that messaging ports were used for call answer sessions during the day being reported.
Session Usage:	The total number of seconds that MCAPI sessions were used for call answer sessions during the day being reported.
VOICE MAIL
Total Messages, Sent:	The total number of messages that were sent on the local messaging system during the reporting period. Note: The Message Sent count includes all messages that were created on the local machine, including header-only messages, messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. A message sent to a mailing list counts as one message created for each recipient.
Total Messages, Current:	The total number of messages that are presently residing on the local messaging system. Note: The traffic unavailable display is normal.
Voice Components, Sent: Voice Components, Current:	The total number of voice components that were sent on the local messaging system during the reporting period. The Voice Components Sent count is the total number of voice components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. The total number of voice components that are presently residing on the local messaging system.
FAX Components, Sent: FAX Components, Current:	The total number of faxes that were sent on the local messaging system during the reporting period. The total number of faxes that are presently residing on the local messaging system.
Binary Attachments, Sent: Binary Attachments, Current:	The total number of binary attachments that were sent on the local messaging system during the reporting period. The Binary Attachments Sent count is the total number of binary attachments included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. The total number of binary attachments that are presently residing on the local messaging system.
Text Components, Sent: Text Components, Current:	The total number of text components that were sent on the local messaging system during the reporting period. The Text Components Sent count is the total number of text components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. The total number of text components that are presently residing on the local messaging system.
Broadcast Messages, Sent:	The number of broadcast messages (as defined by the broadcast messages feature) that were sent on the local messaging system during the reporting period.
Broadcast Messages, Current:	The number of messages that are presently residing in the broadcast mailbox on the local messaging system that are marked as broadcast messages.
Log-in Announcement, Sent:	The number of messages sent on the local messaging system during the reporting period that were login announcements (as defined by the login announcement feature).
Log-in Announcements, Current:	The number of messages that are presently residing in the broadcast mailbox on the local messaging system that are marked as login announcements. Since only one login announcement can exist at any one time in the broadcast mailbox, this number is always 0 or 1.
Priority Messages, Sent:	The number of messages sent on the local messaging system during the reporting period that were marked for priority delivery. The Priority Messages Sent count includes all priority messages that were created on the local machine, including header-only messages, messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. A message sent to a mailing list counts as one message created for each recipient.
Priority Messages, Current:	The number of messages that are presently residing on the local messaging system that are marked as priority messages.
Private Messages, Sent:	The number of messages sent on the local messaging system during the reporting period that were marked for private delivery. The Private Message Sent count includes all private messages that were created on the local machine, including header-only messages, messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. A message sent to a mailing list counts as one message created for each recipient.
Private Messages, Current:	The number of messages that are presently residing on the local messaging system that are marked for private delivery.
Avg. Storage Time:	The average duration (in minutes) for the hour being reported that messages remained in mailboxes before they were deleted.
Avg. Connect Time:	The average duration (in seconds) of calls made directly to a mailbox that occurred during the reporting period.
CALL ANSWER
Total Messages, Received:	The number of call answer messages that were recorded or received by the local machine during the reporting period.
Total Messages, Current:	The number of call answer messages that are presently stored in the local messaging system.
Voice Components, Received: Voice Components, Current:	The number of call answer voice components that were recorded on the local machine during the reporting period. The number of call answer voice components that are presently stored in the local messaging system.
FAX Components, Received: FAX Components, Current:	The number of fax messages that were recorded or received by the local machine during the reporting period. The number of faxes that are presently stored in the local messaging system.
Avg. Storage Time:	The average duration (in minutes) during the day being reported that call answer messages were stored in mailboxes before they were deleted.
Avg. Connect Time:	The average duration (in seconds) of call answer calls that were made during the reporting period.
