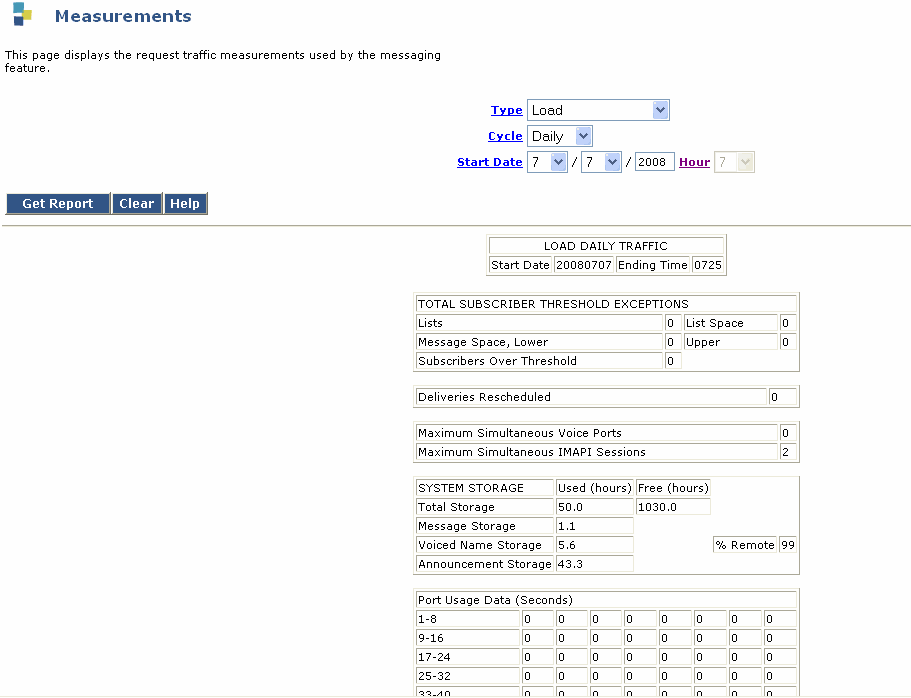

Table: Field Definitions: Measurements page; Load Daily Traffic
|
Field Name |
Description/Procedure |
|
Date: |
The starting date for which traffic data was
collected for the report. It is the date that you entered on the
command line or the current date if you did not specify a date.
If you enter a date prior to the current date,
each day's record is presented as an additional page (screen).
Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily
report record. |
|
Ending Time: |
The time at which data collecting ended. |
|
TOTAL SUBSCRIBER THRESHOLD EXCEPTIONS |
|
Lists: |
The number of warnings that were issued to
subscribers who exceeded the maximum allowable number of mailing
lists during the period being reported. |
|
List Space: |
The number of warnings that were issued to
subscribers who exceeded the maximum allowable number of list
entries during the period being reported. |
|
Message Space, Lower: |
The number of warnings that were issued to
subscribers to indicate that they had reached the lower space
threshold during the period being reported. This lower threshold
is set in the System-Parameters Thresholds screen. |
|
Message Space, Upper: |
The number of warnings that were issued to
subscribers to indicate that they had reached the upper space
threshold during the period being reported. This upper threshold
is set in the System-Parameters Thresholds screen. |
|
Subscribers Over Threshold: |
The number of subscribers that
exceeded one or more of the message space
thresholds during the period being reported. |
|
Deliveries Rescheduled: |
The number of message deliveries that could not be completed and were subsequently rescheduled or canceled. |
|
Maximum Simultaneous Voice Ports: |
The greatest number of ports that were in use at any one time during the period being reported. |
|
Maximum Simultaneous MCAPI Sessions: |
The greatest number of MCAPI sessions that were in use at any one time during the period being reported. |
|
SYSTEM STORAGE |
|
Total Storage, Used (hours): Total Storage, Free (hours): |
The maximum number of used blocks in all voice file systems at any time during the reporting period. The minimum amount of free space available in all voice file systems at any time during the period being reported. |
|
Message Storage: |
The maximum number of hours in use for all the messages during the period being reported. |
|
Voiced Name Storage:
% Remote: |
The maximum number of hours in use for all the names during the period being reported.
The percentage of the name storage that is used to store remote
names. |
|
Announcement Storage: |
The maximum number of hours in use for the announcement during the period being reported. |
|
Port Usage Data (Seconds) |
The number of seconds that each port was in use during the period being reported. The report displays 64 port usage values, corresponding to ports 1 to 64. |
|
Port Peg Count Data (Number of Calls) |
The number of calls that each port handled during the reporting period. The report displays 64 port peg count values, corresponding to ports 1 to 64. |
