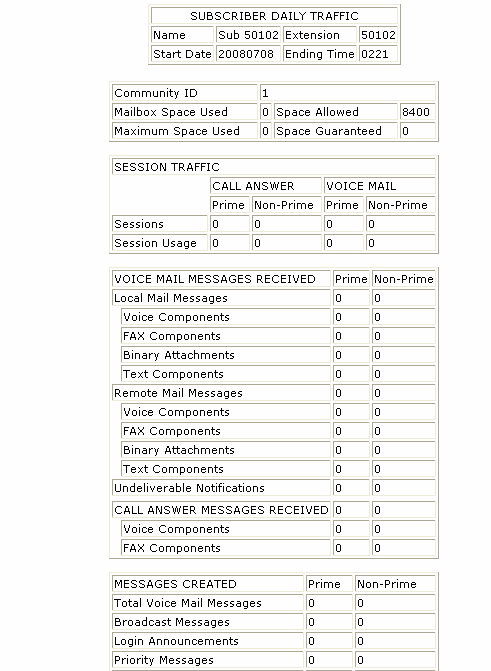

Measurements page; Subscriber Daily Traffic

Reports -> Measurements



Table: Field Definitions: Measurements page; Subscriber Daily Traffic

Field Name	Description/Procedure
Name:	The name of the subscriber whose traffic information is being reported. It is the name that you entered on the command line or the name that corresponds to the subscriber's extension, if you entered the extension.
Extension:	The extension of the subscriber whose traffic information is being reported. This is the extension you entered on the command lin, or the extension that corresponds to the subscriber's name, if you entered the name.
Date:	The starting date for which traffic data was collected for the report. It is the date that you entered on the command line or the current date if you did not specify a date. If you enter a date prior to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record.
Ending Time:	The time at which data collecting ended.
Community ID:	The number of the community to which the subscriber belongs.
Mailbox Space Used:	The amount of message space (in seconds) that was in use by the subscriber at the end of the period being reported.
Space Allowed:	The maximum mailbox size (in seconds) that was administered for this subscriber during the reporting period.
Maximum Space Used:	The maximum amount of message space (in seconds) that was in use at any given time during the reporting period.
Space Guaranteed:	The minimum message space (in seconds), if any, guaranteed for the subscriber's mailbox during the reporting period.
CALL ANSWER Sessions, Prime Sessions, Non-Prime	The number of times that callers were redirected to the messaging system to leave a call answer message during prime and nonprime hours during the reporting period.
VOICE MAIL Sessions, Prime Sessions, Non-Prime	The number of times that the subscriber successfully logged in to the messaging system during prime and nonprime hours during the reporting period.
CALL ANSWER Session Usage, Prime Session Usage, Non-Prime	The total duration (in seconds) of calls to the subscriber during prime and nonprime hours during the reporting period.
VOICE MAIL Session Usage, Prime Session Usage, Non-Prime	The total duration (in seconds) of time that the subscriber was logged in to the messaging system during prime and nonprime hours during the reporting period.
VOICE MAIL MESSAGES RECEIVED
Local Mail Messages, Prime Local Mail Messages, Non-Prime	The number of messages that were received by the subscriber during prime and nonprime hours during the reporting period.
Voice Components:	The number of voice components that were received by the subscriber during prime and nonprime hours during the reporting period.
FAX Components:	The number of Fax components that were received by the subscriber during prime and nonprime hours during the reporting period. .
Binary Attachments:	The number of binary attachments that were received by the subscriber during prime and nonprime hours during the reporting period.
Text Components:	The number of text components that were received by the subscriber during prime and nonprime hours during the reporting period.
Remote Mail Messages, Prime Remote Mail Messages, Non-Prime	The number of messages that were received by the subscriber from remote machines during prime and nonprime hours during the reporting period.
Voice Components:	The number of voice components that were received by the subscriber from remote machines during prime and nonprime hours during the reporting period.
FAX Components:	The number of Fax components that were received by the subscriber from remote machines during prime and nonprime hours during the reporting period.
Binary Attachments:	The number of binary attachments that were received by the subscriber from remote machines during prime and nonprime hours during the reporting period.
Text Components:	The number of text components that were received by the subscriber from remote machines during prime and nonprime hours during the reporting period.
Undeliverable Notifications, Prime Undeliverable Notifications, NonPrime	The number of times that a subscriber was alerted that a message was undeliverable during prime and nonprime hours during the reporting period.
CALL ANSWER MESSAGES RECEIVED
Prime Non-Prime	The number of new call answer messages that accumulated in the subscriber's mailbox during prime and nonprime hours during the reporting period.
Voice Components:	The number of new voice components that accumulated in the subscriber's mailbox during prime and nonprime hours during the reporting period.
FAX Components:	The number of new Fax components that accumulated in the subscriber's mailbox during prime and nonprime hours during the reporting period.
MESSAGES CREATED
Total Voice-Mail Messages, Prime Total Voice-Mail Messages, NonPrime	The total number of messages that were created by the subscriber during prime and nonprime hours during the reporting period.
Broadcast Messages, Prime Broadcast Messages, Non-Prime	The number of broadcast messages that were created by the subscriber during prime and nonprime hours during the reporting period.
Login Announcements, Prime Login Announcements, Non-Prime	The number of login announcements that were created by the subscriber during prime and nonprime hours during the reporting period.
Priority Messages, Prime Priority Messages, Non-Prime	The number of priority messages that were created by the subscriber during prime and nonprime hours during the reporting period.
Private Messages, Prime Private Messages, Non-Prime	The number of private messages that were created by the subscriber during prime and nonprime hours during the reporting period.
Voice Components:	The number of voice components that were created by the subscriber during prime and nonprime hours during the reporting period.
FAX Components:	The number of Fax components that were created by the subscriber during prime and nonprime hours during the reporting period.
Binary Attachments:	The number of binary attachments that were created by the subscriber during prime and nonprime hours during the reporting period.
Text Components:	The number of text components that were created by the subscriber during prime and nonprime hours during the reporting period.
MESSAGES SENT
Local Messages, Prime Local Messages, NonPrime	The number of messages that were sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period.
Voice Components:	The number of voice components that were sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period.
FAX Components:	The number of Fax components that were sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period.
Binary Attachments:	The number of binary attachments that were sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period.
Text Components:	The number of text components that were sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period.
Remote Messages, Prime Remote Messages, Non-Prime	The number of messages that were sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period.
Voice Components:	The number of voice components that were sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period.
FAX Components:	The number of fax components that were sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period.
Binary Attachments:	The number of binary attachments that were sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period.
Text Components:	The number of text components that were sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period.
