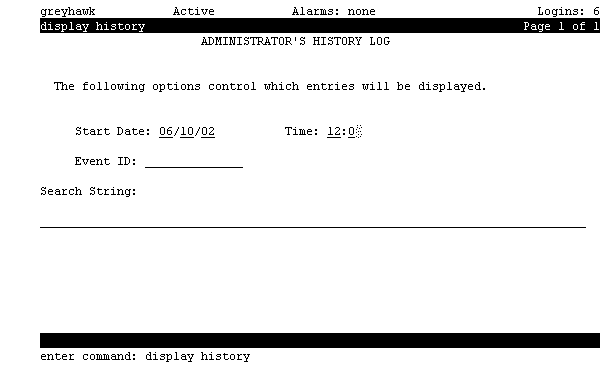

Table: Field Definitions: Administrator's History
Log Screen
|
Field Name |
Valid Input |
Description/Procedure |
|
Start Date: |
A calendar date in the
format mm/dd/yy
|
The beginning date for the log report. If you leave this field blank, all ADMIN events are displayed. The default value is the date that this page was last used. (This pagelastused date is preserved across restarts.) |
|
Time: |
A 24-hour clock time in
the format hh:mm
|
The beginning hour and minute that the report begins. The Start Date: field must have valid entries before you can use this field. If the Time: field is blank, all alarms for the specified start date are displayed. The default value is the time that this page was last used. (This pagelastused time is preserved across restarts.) |
|
Application:
|
Blank
AS, MT, SM, VM, or VP
|
The two-character application
code for the administration log entry:
(blank) All applications
AS= Access Security Gateway
MT = Maintenance
SM= Station Manager
SW= Switch Integration
VM = Messaging
VP = Voice Platform
|
|
Search String: |
From 1 to 78 characters
|
A text string that you want the system to search for in the administrator's log entries. The system searches the Text field of the administrator's history log for matching text. |
