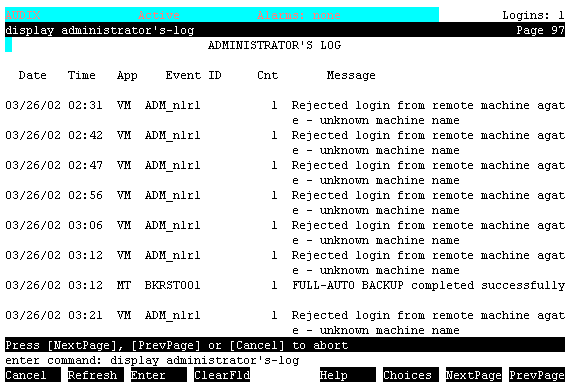

Administrator's Log Screen



Table: Field Definitions: Administrator's Log Screen; Report Results

Field Name	Description/Procedure
Date	The dates that the alarms were logged.
Time	The times on the given dates that the administration alarms were logged.
App	The two-character application code for the administrator's log entry: (blank) All applications AS= Access Security Gateway MT = Maintenance SM= Station Manager SW= Switch Integration VM = Messaging VP = Voice Platform
Event ID:	The code for the administration event type. See Alarms and Events for a list of event types.
Cnt	The number of times that the associated message was sent to the administrator's log within 1 minute.
Message	A textual description of the administration event. Two lines are used for each event.
