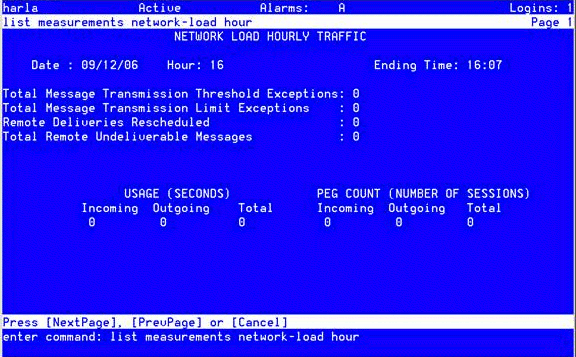

Table: Field Definitions: Network Load Hourly Traffic, Page 1
|
Field Name |
Description/Procedure |
|
Date: |
The starting date for which traffic data was
collected for the report. It is the date that you entered on the
command line or the current date if you did not specify a date.
If you enter a date prior to the current date,
each day's record is presented as an additional page (screen).
Press F7 (NextPage) and F8 (PrevPage) to scroll
through each daily report record. |
|
Hour: |
The starting hour for which traffic data was
collected for the report. It is the hour that you entered on the
command line or the current hour if you did not specify an hour. |
|
Ending Time: |
The time at which data collecting ended. |
|
Total Message Transmission Threshold Exceptions: |
The number of times that any node exceeded
the specified message transmission threshold during the recording
period. |
|
Total Message Transmission Limit Exceptions: |
The number of times that any node exceeded
the message transmission limit specified for that node during
the recording period. |
|
Remote Deliveries Rescheduled: |
The number of messages that were rescheduled because of transmission difficulties or space limitations on the remote node during the recording period. |
|
Total Remote Undeliverable Messages: |
The total number of messages that were rejected
for delivery to a remote machine because, for example, the remote
subscriber was not defined to the local machine. |
|
USAGE (SECONDS) |
|
Incoming
Outgoing
Total |
The number of seconds that each network channel was active with incoming and outgoing calls during the recording period. The total seconds of activity are also provided. |
|
PEG COUNT (NUMBER OF CALLS) |
|
Incoming
Outgoing
Total |
The number of incoming and outgoing calls on each network channel during the recording period. The total number of calls is also provided. |
