Table: Field Definitions:

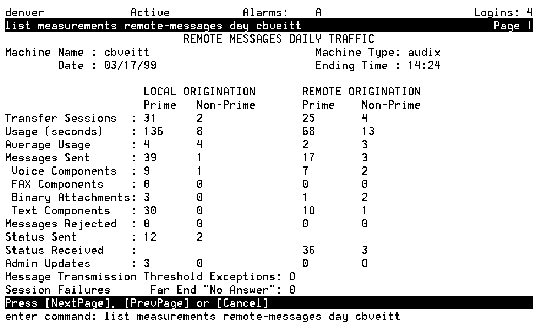

Remote Messages Daily Traffic Screen
|
Field Name
|
Description/Procedure
|
|
Machine Name:
|
The name of the remote machine that you entered
on the command line.
|
|
Machine Type:
|
The type of remote machine,
for example, calld, AUDIX, and so on.
|
|
Date:
|
The starting date for which traffic data was
collected for the report. It is the date that you entered on the
command line or the current date if you did not specify a date.
If you enter a date prior to the current date,
each day's record is presented as an additional page (screen).
Press F7 (NextPage) and F8 (PrevPage) to scroll
through each daily report record.
|
|
Ending Time:
|
The time at which data
collecting ended.
|
|
LOCAL ORIGINATION
|
|
Prime/Non-Prime
|
Whether message transmission
came from the local AUDIX machine during a
period specified as prime or nonprime time.
|
|
Transfer Sessions:
|
The number of message
transfer sessions that occurred during the
reporting period.
|
|
Usage (seconds):
|
The total number of seconds
for all message transfer sessions that occurred
during the reporting period.
|
|
Average Usage:
|
The average length, in
seconds, of a message transfer session.
|
|
Messages Sent:
|
The total number of messages that were sent
from the local AUDIX machine to the remote AUDIX machine.
|
|
Voice Components:
|
The total number of voice components that
were sent from the local AUDIX machine to the remote AUDIX machine.
|
|
FAX Components:
|
The total number of faxes that
were sent from the local AUDIX machine to the remote AUDIX machine. |
|
Binary Attachments:
|
The total number of binary attachments that
were sent from the local AUDIX machine to the remote AUDIX machine.
|
|
Text Components:
|
The total number of text components that were
sent from the local AUDIX machine to the remote AUDIX machine.
|
|
Messages Rejected:
|
The total number of messages that were rejected
by the local AUDIX machines during the reporting period. For call delivery
machines, if there is no positive confirmation, the message is
recorded as rejected.
|
|
Status Sent:
|
The total number of status reports that were
sent by the local AUDIX machine to the remote AUDIX machine for
messages originated by the remote AUDIX machine. This number equals
0 for call delivery machines.
|
|
Status Received:
|
Not applicable.
|
|
Admin Updates:
|
The total number of administration updates
(name, voice name, extension, community changes, add and delete
local subscribers) that were sent from the local AUDIX machine
to the remote AUDIX machine. This field applies to digital network
machines only.
|
|
REMOTE ORIGINATION
|
|
Prime/Non-Prime
|
Whether message transmission
came from the remote AUDIX machine during
a period specified as prime or nonprime time.
|
|
Transfer Sessions:
|
The number of message
transfer sessions that occurred during the
reporting period.
|
|
Usage (seconds):
|
The total number of seconds
for all message transfer sessions that occurred
during the reporting period.
|
|
Average Usage:
|
The average length, in
seconds, of a message transfer session.
|
|
Messages Sent:
|
The total number of messages that were sent
from the remote AUDIX machine and received by the local AUDIX
machine during the reporting period.
|
|
Voice Components:
|
The total number of voice components that
were sent from the remote AUDIX machine and received by the local
AUDIX machine during the reporting period.
|
|
FAX Components:
|
The total number of faxes that
were sent from the remote AUDIX machine and received by the local
AUDIX machine during the reporting period.
|
|
Binary Attachments:
|
The total number of binary attachments that
were sent from the remote AUDIX machine and received by the local
AUDIX machine during the reporting period.
|
|
Text Components:
|
The total number of text components that were
sent from the remote AUDIX machine and received by the local AUDIX
machine during the reporting period.
|
|
Messages Rejected:
|
The total number of messages that were rejected
by the local and remote AUDIX machines during the reporting period.
For call delivery
machines, if there is no positive confirmation, the message is
recorded as rejected.
|
|
Status Sent:
|
Not applicable.
|
|
Status Received:
|
The total number of status reports that were
received by the local AUDIX machine for messages that the local
machine sent to the remote AUDIX machine.
|
|
Admin Updates:
|
The total number of administration updates
(name, voice name, extension, community changes, add and delete
local subscribers) that were sent from the remote AUDIX machine
to the local AUDIX machine. This field applies to digital network
machines only.
|
|
Message Transmission Threshold
Exceptions:
|
The number of times that the local node exceeded
its message transmission threshold.
|
|
Session Failures Far End
"No Answer":
|
The number of unsuccessful
call attempts from the local AUDIX machine
to the remote AUDIX machine.
|
