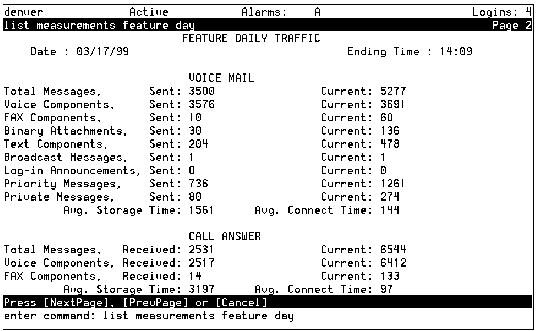

Table: Field Definitions: Feature Daily Traffic Screen, Page 2
|
Field Name |
Description/Procedure |
|
Date: |
The starting date for which traffic data was
collected for the report. It is the date that you entered on the
command line or the current date if you did not specify a date.
If you enter a date prior to the current date,
each day's record is presented as an additional page (screen).
Press F7 (NextPage) and F8 (PrevPage) to scroll
through each daily report record.
|
|
Ending Time: |
The time at which data collecting ended. |
|
VOICE MAIL |
|
Total Messages, Sent: |
The total number of messages that were sent on the local AUDIX system during the reporting period.
Note: The
Message Sent count includes all messages that were created on
the local machine, including header-only messages, messages to
remote subscribers, unaddressed messages, undeliverable messages,
and remote incoming messages. A message sent to a mailing list
counts as one message created for each recipient.
|
|
Total Messages, Current: |
The total number of messages that are presently
residing on the local AUDIX system.
Note:
The traffic unavailable display is normal.
|
|
Voice Components, Sent:
Voice Components, Current: |
The total number of voice components that were sent on the local AUDIX system during the reporting period. The Voice Components Sent count is the total number of voice components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages.
The total number of voice components that
are presently residing on the local AUDIX system.
|
|
FAX Components, Sent:
FAX Components, Current: |
The total number of fax components that were sent on the local AUDIX system during the reporting period. The FAX Components Sent count is the total number of fax components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages.
The total number of fax components that are
presently residing on the local AUDIX system.
|
|
Binary Attachments, Sent:
Binary Attachments, Current: |
The total number of binary attachments that were sent on the local AUDIX system during the reporting period. The Binary Attachments Sent count is the total number of binary attachments included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages.
The total number of binary attachments that
are presently residing on the local AUDIX system.
|
|
Text Components, Sent:
Text Components, Current: |
The total number of text components that were sent on the local AUDIX system during the reporting period. The Text Components Sent count is the total number of text components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages.
The total number of text components that are
presently residing on the local AUDIX system.
|
|
Broadcast Messages, Sent: |
The number of broadcast messages (as defined by the broadcast messages feature) that were sent on the local AUDIX system during the reporting period. |
|
Broadcast Messages, Current: |
The number of messages that are presently
residing in the broadcast mailbox on the local AUDIX system that
are marked as broadcast messages.
|
|
Log-in Announcement, Sent: |
The number of messages sent on the local AUDIX system during the reporting period that were login announcements (as defined by the login announcement feature). |
|
Log-in Announcements, Current: |
The number of messages that are presently
residing in the broadcast mailbox on the local AUDIX system
that are marked as login announcements. Since only one login announcement
can exist at any one time in the broadcast mailbox, this number
is always 0 or 1.
|
|
Priority Messages, Sent: |
The number of messages sent on the local AUDIX system during the reporting period that were marked for priority delivery.
The Priority Messages Sent count includes
all priority messages that were created on the local machine,
including header-only messages, messages to remote subscribers,
unaddressed messages, undeliverable messages, and remote incoming
messages. A message sent to a mailing list counts as one message
created for each recipient.
|
|
Priority Messages, Current: |
The number of messages that are presently
residing on the local AUDIX system that are marked as priority
messages.
|
|
Private Messages, Sent: |
The number of messages sent on the local AUDIX system during the reporting period that were marked for private delivery.
The Private Message Sent count includes all
private messages that were created on the local machine, including
header-only messages, messages to remote subscribers, unaddressed
messages, undeliverable messages, and remote incoming messages.
A message sent to a mailing list counts as one message created
for each recipient.
|
|
Private Messages, Current: |
The number of messages that are presently
residing on the local AUDIX system that are marked for private
delivery.
|
|
Avg. Storage Time: |
The average duration (in minutes) for the hour being reported that messages remained in mailboxes before they were deleted. |
|
Avg. Connect Time: |
The average duration (in seconds) of calls made directly to a mailbox that occurred during the reporting period. |
|
CALL ANSWER |
|
Total Messages, Received: |
The number of call answer messages that were recorded
or received by the local machine during the reporting period.
|
|
Total Messages, Current: |
The number of call answer messages that are presently
stored in the local AUDIX system.
|
|
Voice Components, Received: Voice Components, Current: |
The number of call answer voice components that
were recorded on the local machine during the reporting period.
The number of call answer voice components
that are presently stored in the local AUDIX system.
|
|
FAX Components, Received: FAX Components, Current: |
The number of call answer fax components that
were received by the local machine during the reporting period.
The number of call answer fax components that
are presently stored in the local AUDIX system.
|
|
Avg. Storage Time: |
The average duration (in minutes) during the day being reported that call answer messages were stored in mailboxes before they were deleted. |
|
Avg. Connect Time: |
The average duration (in seconds) of call answer calls that were made during the reporting period. |
