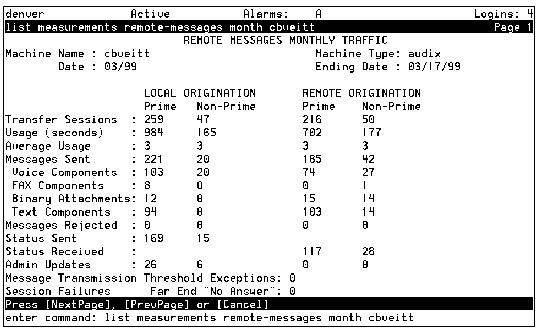

Table: Field Definitions: Remote Messages Monthly Screen
|
Field Name |
Description/Procedure |
|
Machine Name: |
The name of the remote machine that you entered
on the command line.
|
|
Machine Type: |
The type of remote machine, for example, calld or AUDIX. |
|
Date: |
The starting month for which traffic data
was collected for the report. It is the month that you entered
on the command line or the current date if you did not specify
a month.
If you enter a month prior to the current
month, each month's record is presented as an additional page
(screen). Press F7 (NextPage) and F8 (PrevPage)
to scroll through each monthly report record.
|
|
Ending Date: |
The day on which data collection ended. |
|
LOCAL ORIGINATION |
|
Prime/Non-Prime |
Whether message transmission came from the local AUDIX during a period specified as prime or nonprime time. |
|
Transfer Sessions: |
The number of message transfer sessions that occurred during the reporting period. For AMIS analog messages, each transmission or reception session is pegged as a transfer session. |
|
Usage (seconds): |
The total number of seconds for all message transfer sessions that occurred during the reporting period. AMIS analog messages are included in this total. |
|
Average Usage: |
The average length, in seconds, of a message transfer session. AMIS analog messages are included in this total. |
|
Messages Sent: |
The total number of messages that were sent
from the local AUDIX machine to the remote AUDIX machine. AMIS
analog messages are included in this total.
|
|
Voice Components: |
The total number of voice components that
were sent from the local AUDIX machine to the remote AUDIX machine.
AMIS analog messages are included in this total.
|
|
FAX Components: |
The total number of fax components that were
sent from the local AUDIX machine to the remote AUDIX machine.
Call delivery messages are included in this total.
|
|
Binary Attachments: |
The total number of binary attachments that
were sent from the local AUDIX machine to the remote AUDIX machine.
|
|
Text Components: |
The total number of text components that were
sent from the local AUDIX machine to the remote AUDIX machine.
|
|
Messages Rejected: |
The total number of messages that were rejected
by the local AUDIX machines during the reporting period. AMIS
analog messages are included in this total. For call delivery
machines, if there is no positive confirmation, the message is
recorded as rejected.
|
|
Status Sent: |
The total number of status reports that were
sent by the local AUDIX machine to the remote AUDIX machine for
messages originated by the remote AUDIX machine. This number is
0 for call delivery machines.
|
|
Status Received: |
Not applicable. |
|
Admin Updates: |
The total number of administration updates
(name, voice name, extension, community changes, add and delete
local subscribers) that were sent from the local AUDIX machine
to the remote AUDIX machine. This field applies to digital network
machines only.
|
|
REMOTE ORIGINATION |
|
Prime/Non-Prime |
Whether message transmission came from the remote AUDIX during a period specified as prime or nonprime time. |
|
Transfer Sessions: |
The number of message transfer sessions that occurred during the reporting period. For AMIS analog messages, each transmission or reception session is pegged as a transfer session. |
|
Usage (seconds): |
The total number of seconds for all message transfer sessions that occurred during the reporting period. AMIS analog messages are included in this total. |
|
Average Usage: |
The average length, in seconds, of a message transfer session. AMIS analog messages are included in this total. |
|
Messages Sent: |
The total number of messages that were sent from
the remote AUDIX machine and received by the local AUDIX machine
during the reporting period. AMIS analog messages are included
in this total.
|
|
Voice Components: |
The total number of voice components that were sent
from the remote AUDIX machine and received by the local AUDIX
machine during the reporting period. AMIS analog messages are
included in this total.
|
|
FAX Components: |
The total number of voice components that were sent
from the remote AUDIX machine and received by the local AUDIX
machine during the reporting period. Call delivery messages are
included in this total.
|
|
Binary Attachments: |
The total number of binary attachments that were
sent from the remote AUDIX machine and received by the local AUDIX
machine during the reporting period.
|
|
Text Components: |
The total number of text components that were sent
from the remote AUDIX machine and received by the local AUDIX
machine during the reporting period.
|
|
Messages Rejected: |
The total number of messages that were rejected
by the local and remote AUDIX machines during the reporting period.
AMIS analog messages are included in this number. For call delivery
machines, if there is no positive confirmation, the message is
recorded as rejected.
|
|
Status Sent: |
Not applicable. |
|
Status Received: |
The total number of status reports that were received
by the local AUDIX machine for messages that the local machine
sent to the remote AUDIX machine. This field is not applicable
for AMIS analog messages.
|
|
Admin Updates: |
The total number of administration updates (name,
voice name, extension, community changes, add and delete local
subscribers) that were sent from the remote AUDIX machine to the
local AUDIX machine. This field applies to digital network machines
only.
|
|
Message Transmission Threshold Exceptions: |
The number of times that the local node exceeded
its message transmission threshold. This field is not applicable
for AMIS analog machines.
|
|
Session Failures Far End "No Answer": |
The number of unsuccessful call attempts from the local AUDIX machine to the remote AUDIX machine. AMIS analog session failures are included in this count. |
