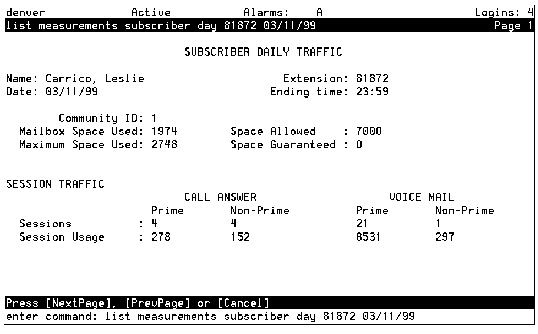

Table: Field Definitions: Subscriber Daily Traffic Screen, Page 1
|
Field Name |
Description/Procedure |
|
Name: |
The name of the subscriber whose traffic information
is being reported. It is the name that you entered on the command
line or the name that corresponds to the subscriber's extension,
if you entered the extension.
|
|
Extension: |
The extension of the subscriber whose traffic
information is being reported. This is the extension you entered
on the command lin, or the extension that corresponds to the subscriber's
name, if you entered the name.
|
|
Date: |
The starting date for which traffic data was
collected for the report. It is the date that you entered on the
command line or the current date if you did not specify a date.
If you enter a date prior to the current date,
each day's record is presented as an additional page (screen).
Press F7 (NextPage) and F8 (PrevPage) to scroll
through each daily report record.
|
|
Ending Time: |
The time at which data collecting ended. |
|
Community ID: |
The number of the community to which the subscriber belongs. |
|
Mailbox Space Used: |
The amount of message space (in seconds) that
was in use by the subscriber at the end of the period being reported.
|
|
Space Allowed: |
The maximum mailbox size (in seconds) that
was administered for this subscriber during the reporting period.
|
|
Maximum Space Used: |
The maximum amount of message space (in seconds)
that was in use at any given time during the reporting period.
|
|
Space Guaranteed: |
The minimum message space (in seconds), if any, guaranteed for the subscriber's mailbox during the reporting period. |
|
CALL ANSWER Sessions, Prime Sessions, Non-Prime |
The number of times that callers were redirected
to the AUDIX system to leave a call answer message during prime
and nonprime hours during the reporting period.
|
|
VOICE MAIL Sessions, Prime Sessions, Non-Prime |
The number of times that the subscriber successfully
logged in to AUDIX during prime and nonprime hours during the
reporting period.
|
|
CALL ANSWER Session Usage, Prime Session Usage, Non-Prime |
The total duration (in seconds) of calls to the subscriber during prime and nonprime hours during the reporting period. |
|
VOICE MAIL Session Usage, Prime Session Usage, Non-Prime |
The total duration (in seconds) of time that
the subscriber was logged in to AUDIX during prime and nonprime
hours during the reporting period.
|
