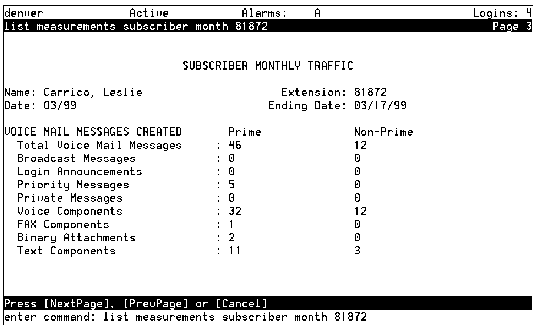

Table: Field Definitions: Subscriber Monthly Traffic Screen, Page 3
|
Field Name |
Description/Procedure |
|
Name: |
The name of the subscriber whose traffic information
is being reported. It is the name that you entered on the command
line or the name that corresponds to the subscriber's extension
if you entered the extension.
|
|
Extension: |
The extension of the subscriber whose traffic
information is being reported. This is the extension that you
entered on the command line or the extension that corresponds
to the subscriber's name if you entered the name.
|
|
Date: |
The starting month and year for which traffic
data was collected for the report. It is the month that you entered
on the command line or the current month if you did not specify
a month.
If you enter a month prior to the current
month, each month's record is presented as an additional page
(screen). Press F7 (NextPage) and F8 (PrevPage)
to scroll through each monthly report record.
|
|
Ending Time: |
The month, day, and year at which data collecting ended. |
|
VOICE MAIL MESSAGES CREATED |
|
Total Voice Mail Messages, Prime Total Voice Mail Messages, NonPrime |
The total number of messages that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
|
Broadcast Messages, Prime Broadcast Messages, Non-Prime |
The number of broadcast messages that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
|
Login Announcements, Prime Login Announcements, Non-Prime |
The number of login announcements that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
|
Priority Messages, Prime Priority Messages, NonPrime |
The number of priority messages that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
|
Private Messages, Prime Private Messages, NonPrime |
The number of private messages that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
|
Voice Components: |
The number of voice components that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
|
FAX Components: |
The number of fax components that were created by
the subscriber during prime and nonprime hours during the reporting
period.
|
|
Binary Attachments: |
The number of binary attachments that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
|
Text Components: |
The number of text components that were created
by the subscriber during prime and nonprime hours during the reporting
period.
|
