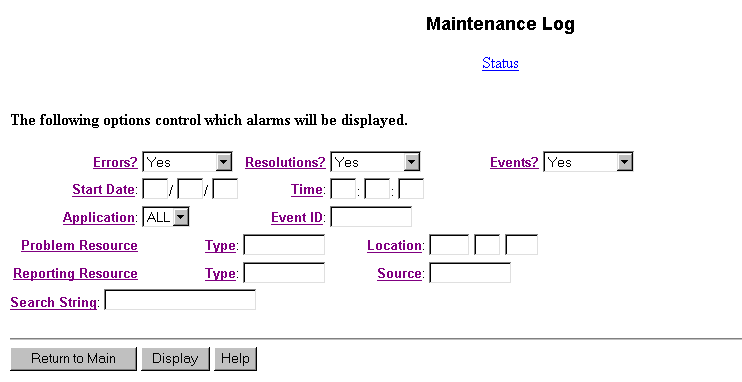

Table: Field Definitions: Maintenance Log Selection
Page
|
Field Name
|
Valid Input
|
Description/Procedure
|
|
Errors?:
|
Yes or No
|
Select Yes if you want to display log entries with the
event type ERR.
|
|
Resolutions?:
|
Yes or No
|
Select Yes if you want to display log entries with the
event type RES.
|
|
Events?:
|
Yes or No
|
Select Yes if you want to display
log entries with the event type EVN.
|
|
Start Date:
|
A calendar date in the format mm/dd/yy
|
Enter two numeric characters in the month,
day, and year fields. This displays the log for the specified
date and beyond. You cannot specify dates before 1970 or after
2037. The year field requires 2 characters. The numbers 00 - 37
represents the years 2000 - 2037, and numbers 70 - 99 represents
the years 1970 - 1999.
|
| Time: |
A 24-hour clock time in the format hh:mm |
This displays the logs for the specified time going foward. If
no time is specificed, the time starts from the beginning of the
day, indicated as 00:00:00, for the specified date. If only the
time is specified, the start date is the current day. |
|
Application:
|
Blank
AS, MT, SM, SW, VM, or VP
|
The two-character application code for the
administration log entry:
(blank) All applications
AS= Access Security Gateway
MT = Maintenance
SM= Station Manager
SW= Switch Integration
VM = Messaging (voice mail, fax mail, and email messages)
VP = Voice Platform
|
| Event ID: |
|
Enter an Event ID, which is a code that identifies the condition
reported. Only those log entries with the specified Event ID are
displayed. |
| Problem Resource Type: |
|
Enter the problem resource type. This identifies the logical
resource type or system component reported. Only log entries with
the specified problem resource type are displayed. |
|
Location:
|
|
Enter the problem resource location. This
is the equipment name, type, and number that identifies the physical
location of the problem resource. Only log entries with the specified
problem resource location are displayed.
|
| Reporting Resource Type: |
|
Enter the reporting resource type. This identifies the logical
resource type of the resource that discovers and detects the problem.
Only log entries with the specified reporting resource type are
displayed. |
|
Reporting Resource Source:
|
|
Enter the reporting resource source. This
is a unique value that is used to identify the specific line of
code reporting the condition. Only log entries with the specified
reporting resource source are displayed.
|
|
Search String:
|
|
Enter a text string. Only log entries that
contain the specificed text entries are displayed.
|
