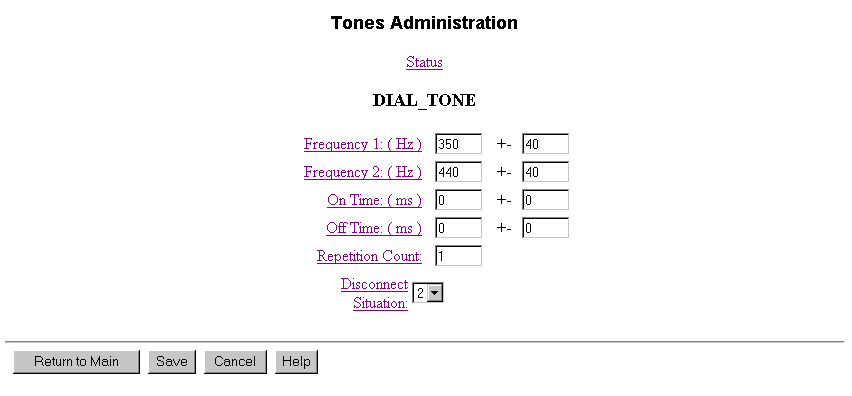

Tones Administration�Edit Tone Page



Table: Edit Tone Page— Field Descriptions�

Field	Description	Values
Frequency 1 and 2	This field refers to the set of frequencies that are used within each tone.	If a dial tone is 440 Hz + 480 Hz, you need to enter 440 under Frequency 1 and 480 under Frequency 2.
On Time	Specifies the duration of the On cycles in milliseconds.
Off Time	Specifies the duration of the Off cycles in milliseconds.
Repetition Count	These fields display the results of analysis of the number of occurrences of the on time/off time cycles.	integer
Disconnect Situation	This field specifies when the tone needs to be treated as a disconnect. It is normally used in countries where disconnect signaling is achieved through call progress tones.	0 means the tone will not be recognized as a disconnect tone. 1 means the tone will be recognized as a disconnect tone during voice coding only. 2 means the tone will be recognized as a disconnect tone during all time other than outbound calling.
