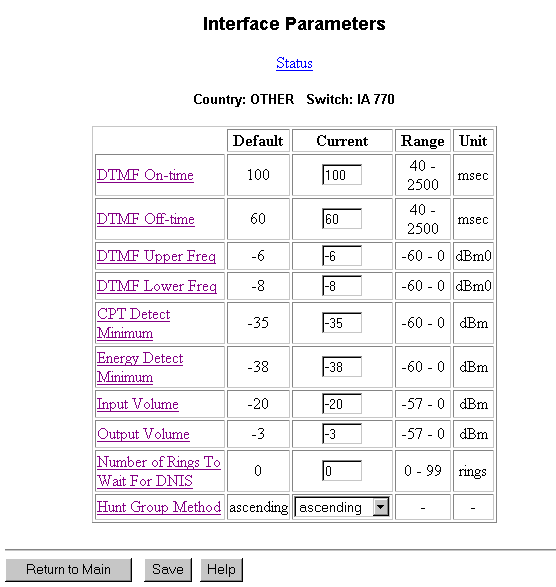

Field
|
Description
|
Values
|
|
DTMF On-time
|
Output DTMF tone duration for auto dialing.
(The duration can be regulated in your country.)
|
Range is 40–2500 msec in increments of
10�msec. Usually set at 100.
|
|
DTMF Off-time
|
Output DTMF interdigit pause for auto dialing.
(The duration can be regulated in your country.)
|
Range is 40–2500 msec in increments of
10�msec. Usually set at 60.
|
| DTMF Upper Frequency |
Input level for the DTMF high group tone. Used to
set the level and create twist. |
The range is -60 to 0 dBm in increments of 0.1 dBm. Usually set
at -6. |
| DTMF Lower Frequency |
Output level for the DTMF low group tone. (Typically,
the default value does not require change.) |
The range is -60 to 0 dBm in increments of 0.1 dBm. Usually set
at -8. |
| CPT Detect Minimum |
The minimum detection level for call progress tones.
(If set too low, the system can detect noise on the line as tone.
If set too high, actual tones mught not be detected.) |
Range is –60 to 0 dBm in increments of 0.1 msec. Usually
set at –35. |
| Energy Detect minimum |
Minimun energy level needed to classify speech energy
used in answer detection. (If set too high, the answer might not
be detected. If set too low, false detection may occur). |
Range is –60 to 0 dBm in increments of 0.1 msec. Usually
set at –38. |
| Input Volume |
Specifies the incoming speech volume for INTUITY AUDIX
messages and prompts. If the volume is too low, messages might not
be clearly audible. If too high, messages could be unacceptably
loud to subscribers; clipping and hence distortion could occur.
Normally, the default parameters provide appropriate volume levels;
however, certain line characteristics may make changes necessary.See
Volume Loss and Gain Settings in Input
Volume and Output Volume below. |
Range is -57 to 0 dB in increments of 10�dB. Suggested value is
-20 (12�dB). |
|
Output volume:
|
Specifies outgoing speech volume.
This parameter controls the playback level
of recorded messages and prompts. See Volume
Loss and Gain Settings in Input Volume and
Output Volume below. |
Range is -57 to 0�dB in increments of 10�dB.
Suggested value is -3 (0�dB).
|
| Number of Rings To Wait For DNIS |
Specifies the number of tries to obtain DNIS on a
Tip/Ring channel before running a default script (if any). The default
is 2 rings. |
Range from 0 to 99. |
| Hunt Group Method |
Specifies the order of hunting for idle channels.
(This value can affect the results of traffic analysis) |
Ascending
Descending
Random
|
