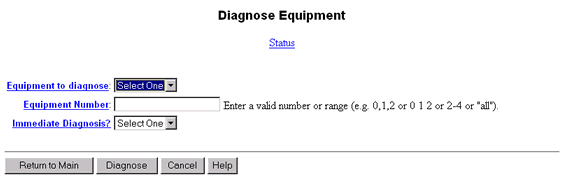

Diagnose Equipment Page

Table: Field Definitions: Diagnose Equipment Page

Field Name	Description/Procedure
Equipment to diagnose	Select the equipment to diagnose. You can select only Card.
Equipment Number	Specifes the number of the card. Enter 8, which is the virtual slot number of the CWY1 board on the S8300 Media Server.
Immediate Diagnosis?	Immediate diagnosis takes specified channels out of service immediately even if a call is in progress. Select NO to wait until all specified channels are idle before beginning the diagnosis. Note: Selecting YES in the Immediate Diagnosis? field disconnects calls in progress. Do not select YES unless call traffic is extremely low. Diagnosing voice cards only when they are free of calls can take longer, but no calls are disconnected.
