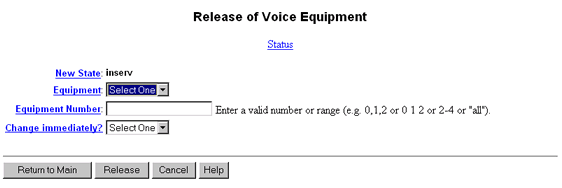

Release of Voice Equipment Page



Table: Field Definitions: Release of Voice Equipment Page

Field Name	Description/Procedure
New State	Specifies the state of the equipment. This field is always manoos.
Equipment	Specify Channel.
Equipment Number	Specifes the number of the channel. Enter a valid number or range or all. You can enter channel numbers in several forms: A single number (for example, 1) A range of numbers (for example, 0-2) A list of single numbers (for example, 0,1,2) A list of single numbers and ranges (for example, 0, 1-2)
Change Immediately?	Select YES to change the state immediately, even if the channel is busy, or NO to change the state when the channel becomes idle. Caution: Selecting YES in the Change Immediately? field disconnects calls in progress. Do not select YES unless call traffic is extremely low. If you select NO, the voice cards or channels busy out when they are free of calls. Busying out voice cards and channels only when they are free of calls can take longer, but calls are not disconnected.
