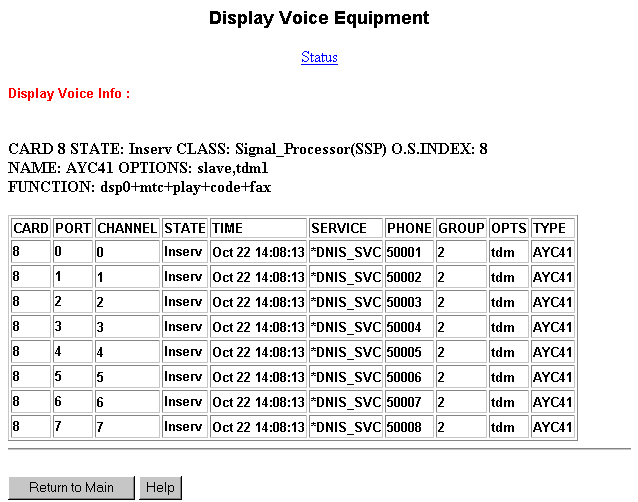

Display Voice Equipment Page





Table: Field Definitions: Display Voice Equipment Page

Field Name	Description/Procedure
Card	Identifies the circuit card on which the channel resides. For IA 770 INTUITY AUDIX, this number is always 8, since the S8300 sees the CWY1 board as residing in virtual slot 8. The CWY1 card is actually a signal processor rather than an analog port card, but it functions as a virtual analog port card.
Port	The virtual port number, 0 through 7, on the CWY1 card.
Channel	The virtual channel number, 0 through 7, on the CWY1 card.
State	The current status of the channel, as follows: In-service (INSERV) - the normal state Facility-out-of-service (FOOS) Manually-out-of-service (MANOOS) Hardware-out-of-service (HWOOS) broken - diagnostics did not pass on the card and it may have to be replaced
Time	The time and date of the last change in state of the channel.
Service	The associated service name or a DNIS designation indication.
Phone	The switch extensions that correspond to the channel.
Group	Not applicable.
Opts	The equipment options (talk or TDM.)
Type	The type of voice card being used. This column always reads AYC41, though the board is referred to in this documentation as the CWY1 board.
