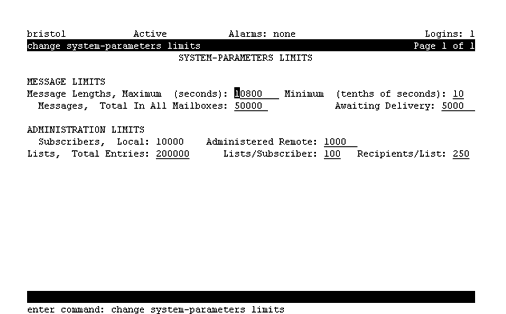

Table: Field Definitions: System-Parameters Limits
Screen
|
Field Name
|
Valid Input
|
Description/Procedure
|
| MESSAGE LIMITS |
| Message Lengths, Maximum: |
10800 (180 minutes)
|
Enter the length, in seconds, of the longest message that can be created. Maximum message lengths for individual subscribers can be further restricted on the Class of Service and Subscriber screens. |
| Message Lengths, Minimum: |
Default: 10 |
Enter the length, in tenths of a second, of the shortest message that the AUDIX system recognizes as a message. |
| Messages, Total in All Mailboxes: |
Default: 50000 |
Enter the maximum number of messages expected in all subscribers' mailboxes at any one time. This number tells the system when to start generating alarms. It does not prevent message delivery. |
| Messages, Awaiting Delivery: |
Default: 5000
|
Enter the maximum number of messages expected in the system delivery queue. The recommended value is 10% of the value in the Messages, Total in All Mailboxes: field. This number tells the system when to start generating alarms. It does not prevent message delivery. |
| ADMINISTRATION LIMITS |
|
Subscribers, Local:
|
15000
|
This field displays the maximum number of subscribers that can be administered on this AUDIX system. The value is determined when you purchase or upgrade your system and can only be changed by technical support engineers. |
| Subscribers, Administered Remote: |
1000
|
Enter the maximum number of remote subscribers that can be administered on this AUDIX system. |
| Lists, Total Entries: |
Default: 50000 |
Enter the total number of entries allowed in all subscribers' lists.
|
| Lists/ Subscriber: |
Default: 100 |
Enter the maximum number of lists allowed per subscriber. |
| Recipients/List: |
Default: 250 |
Enter the maximum number of entries (recipients) allowed per subscriber list. |
