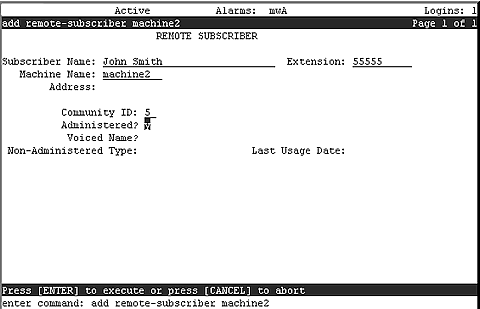

Table: Field Definitions: Remote Subscriber Screen
|
Field |
Valid Input |
Procedure/Description |
|
Subscriber Name:
|
A string of 1 through 29 alphabetic characters;
can include dashes or underscores
|
Enter the name of the remote user to be added or changed. This is a mandatory input field; there is no default value. The name must be unique.
It is recommended that you enter the last name first
and then a comma and then the first name. For example: Doe,Jane. However,
any combination of letters can be used. Notice that there are no blank
(embedded) spaces in the example. That is, the name is not entered as
Doe,�Jane.
Furthermore, in areas in which telephones
have letters that accompany the numbers, each name must be unique
as entered on the keypad of a touchtone telephone. For example,
use Doe,JaneA and Doe,JaneZ to distinguish between two subscribers
named Jane Doe.
|
|
Extension:
|
A 3-digit to 10-digit telephone extension |
Enter the user's telephone extension. The extension
must:
- Be within the range of numbers assigned to
the remote machine.
- Not be assigned to another user on the same
remote machine. The address (prefix plus extension) must be a unique
address among all networked machines.
- Be of the length administered on the remote
machine.
|
|
Machine Name:
|
Display-only
|
The name of the machine on which the remote user is administered, if the user is an administered user. |
|
Address:
|
Display-only
|
The unique identifier created by combining the prefix assigned to the machine and the user's extension. |
|
Community ID:
|
Blank or an integer from 1 through 15 |
Enter the community ID to be assigned to this user. A community is a group of users that is restricted from sending messages to other designated groups. For more information on community sending restrictions, see Setting Up Community Sending Restrictions. If this field is left blank, the system default community ID from the Machine screen for the local machine is used. If sending restrictions are in place on your network, the Community ID for this user must be the same on this machine as on the user's local machine. |
|
Administered?
|
Display-only
|
When you manually add a remote user, the system
automatically places a y in the field. Also, if a nonadministered
remote user becomes administered through a remote update, the value
in this field changes from n to y.
If a remote system calls the local system and sends
a message from a nonadministered remote user, the local system creates
a verified remote user record in the database and places an n
in the field.
|
|
Voiced Name?
|
Display-only
|
This field contains an n until you record
the user's name or until the user's voiced name comes across from the
user's local machine during an update.
This field automatically changes to y when
you record the user's name or when the user's voiced name comes across
from the user's local machine during an update.
|
|
Non-Administered Type:
|
Display-only
|
This field displays the type of nonadministered
user, such as verified.
|
|
Last Usage Date:
|
Display-only
|
This field displays the most recent date the remote
user received a message. The field helps you to determine the call traffic
for the user.
|
