Type y to display
the alarm level or n to omit that alarm
level from the report.
You can request major alarms,
minor alarms, warnings, or any combination thereof.
Start Date:
Blank
Date (mm/dd/yy)
The date for the alarm report
begins. If you leave this field blank, the system
displays all recorded alarms of the type specified
in the Alarm Type: field.
Time:
Blank
Time (hh:mm)
The hour and minute that
you want the alarm report to begin. The Start
Date: field must have a valid entry before
you can enter the time. If you leave this field
blank, the system displays all alarms for the
specified start date.
Application:
Blank
AS, EL, MT, SM, VM, or VP
The two-character application
code for the report entry:
(blank) All applications
AS= Access Security Gateway
EL= Enhanced List Application
MT = Maintenance
SM= Station Manager
SW= Switch Integration
VM = Messaging (voice mail, fax mail, and
email messages)
VP = Voice Platform
Resource Type:
Blank
A resource type
A specific type of alarmed
resource for the alarm report, such as alarm_orig,
mirror, netwk_bd.
For a list of valid entries,
see Alarms and
Events.
If this field contains a
resource type, only alarms related to the specified
resource type are displayed. If you leave this
field blank, all resource types are included
in the report.
Note:
If you use a specific resource type, note
the alarm code that is listed with it. You will
also need to enter that information on this
page.
Location:
See description at right
Type an Avaya INTUITY system
location to display alarms for a particular
piece of hardware in a physical location. The

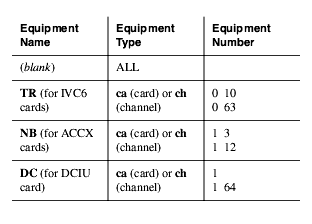

location field consists of three parts: equipment
name, type, and number. For each part, you can
enter values as shown:
If you enter a location,
the Resource Type: field must contain
a value. Only alarms related to the specified
resource type and location are displayed.
Alarm Code:
From 0 to 999
The alarm code that corresponds
to the resource type.
If you did not enter a resource
type, you can enter an alarm code. In this case,
the report will contain multiple resource types
with the same alarm code.
