Table: Field Definitions:

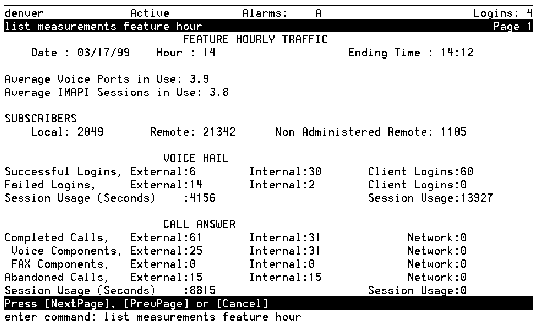

Feature Hourly Traffic Screen, Page 1
|
Field Name
|
Description/Procedure
|
|
Date:
|
The starting date for
which traffic data was collected for the report.
It is the date you entered on the command
line or the current date if you did not specify
a date.
If you enter a date previous
to the current date, each day's record is
presented as an additional page (screen).
Press F7 (NextPage) and F8 (PrevPage) to scroll
through each daily report record.
|
|
Hour:
|
The starting hour for
which traffic data was collected for the report.
It is the hour you entered on the command
line or the current hour if you did not specify
an hour.
|
|
Ending Time:
|
The time at which data
collecting ended.
|
|
Average Ports in Use:
|
The average number of
ports that were in use simultaneously during
the hour of the day you selected. On small
systems, if this number is greater than half
the total number of ports configured, the
AUDIX system is probably experiencing call
blocking.
|
|
Average IMAPI Sessions
in Use:
|
The average number of
IMAPI sessions that were in use simultaneously
during the hour of the day you selected. On
small systems, if this number is greater than
half the total number of ports configured,
the AUDIX system is probably experiencing
call blocking.
|
|
SUBSCRIBERS
|
|
Local:
|
The total number of local
subscribers administered on the AUDIX system
at the end of the hour being reported.
|
|
Remote:
|
The total number of remote
subscribers administered on the AUDIX system
at the end of the hour being reported.
|
|
Non Administered Remote:
|
The total number of subscribers
external to the AUDIX system (not administered)
who sent mail to an administered AUDIX subscriber
or to whom mail was sent by an administered
AUDIX subscriber the end of the hour being
reported.
|
|
VOICE MAIL
|
|
Successful Logins, External:
Successful Logins, Internal:
Successful Logins, Client
Logins:
|
The number of successful
login attempts made during the hour reported.
Login attempts were made by subscribers calling
from:
- Telephones
not administered (external) on the host
switch
- Telephones
administered (internal) on the host switch
- IMAPI
interface (client logins)
|
|
Failed Logins, External:
Failed Logins, Internal:
Failed Logins, Client
Logins:
|
The number of unsuccessful
login attempts made during the hour reported.
Login attempts were made by subscribers calling
from:
- Telephones
not administered (external) on the host
switch
- Telephones
administered (internal) on the host switch
- IMAPI
interface (client logins)
Unsuccessful means
that the AUDIX system did not allow the caller
access to AUDIX operations. Denial to access
could be due to an unrecognizable password,
login ID, or both, or because the caller hung
up before completing the call.
|
|
Session Usage (seconds):
|
The total number of seconds
(across all ports) that the system was used
for messaging sessions (including voice messages,
fax messages, email messages, call message
retrieval, change of passwords, and changes
of personal greetings) during the hour being
reported.
|
|
Session Usage:
|
The total number of seconds
that IMAPI sessions were in use for voice
mail sessions during the hour reported.
|
|
CALL ANSWER
|
|
Completed Calls, External:
Completed Calls, Internal:
Completed Calls, Network:
|
The number of completed
call answer telephone calls made to the AUDIX
system during the hour reported. Calls came
from:
- Telephones
not administered (external) on the host
switch
- Telephones
administered (internal) on the host switch
- Telephones
networked with IMAPI sessions to the host
switch
These numbers include
the times the AUDIX system answered calls
for subscribers, attendants, and bulletin
boards.
|
|
Voice Components, External:
Voice Components, Internal:
Voice Components, Network:
|
The number of voice components
that were included in call answer telephone
calls made to the AUDIX system during the
hour reported. Calls came from:
- Telephones
not administered (external) on the host
switch
- Telephones
administered (internal) on the host switch
- Telephones
networked with IMAPI sessions to the host
switch
These numbers include
the times the AUDIX system answered calls
for subscribers, attendants, and bulletin
boards.
|
|
FAX Components, External:
FAX Components, Internal:
FAX Components, Network:
|
The number of fax components
that were included in call answer telephone
calls made to the AUDIX system during the
hour reported. Calls came from:
- Telephones
not administered (external) on the host
switch
- Telephones
administered (internal) on the host switch
- Telephones
networked with IMAPI sessions to the host
switch
These numbers include
the times the AUDIX system answered calls
for subscribers, attendants, and bulletin
boards.
|
|
Abandoned Calls, External:
Abandoned Calls, Internal:
Abandoned Calls, Network:
|
The number of times a
caller hung up after the mailbox greeting
started to play, but before the beep, to leave
a message. Calls came from:
- Telephones
not administered (external) on the host
switch
- Telephones
administered (internal) on the host switch
- Telephones
networked with IMAPI sessions to the host
switch
These numbers include
the times the AUDIX system answered calls
for subscribers, attendants, and bulletin
boards.
|
|
Session Usage (seconds):
|
The total number of seconds
(across all ports) that the system was used
for call answer sessions during the hour being
reported.
|
|
Session Usage:
|
The total number of seconds
that IMAPI sessions were used for call answer
sessions during the hour being reported.
|
