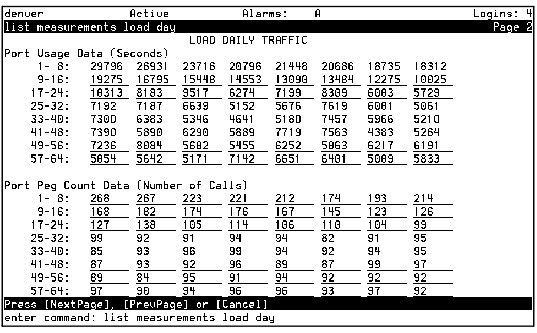

Load Daily Traffic Screen, Page 2






Table: Field Definitions: Load Daily Traffic Screen, Page 2
Field Name
Description/Procedure
Port Usage Data (Seconds)
The number of seconds that each port was in use during the period being reported. The report displays 64 port usage values, corresponding to ports 1 to 64.
Port Peg Count Data (Number of Calls)
The number of calls that each port handled during the reporting period. The report displays 64 port peg count values, corresponding to ports 1 to 64.
