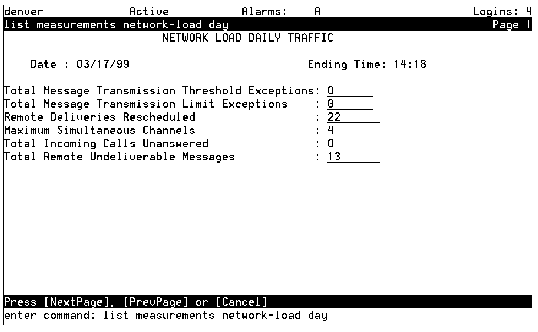

Table: Field Definitions: Network Load Daily Traffic Screen, Page 1
|
Field Name |
Description/Procedure |
|
Date: |
The starting date for which
traffic data was collected for the report.
It is the date you entered on the command
line or the current date if you did not specify
a date.
If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record. |
|
Ending Time: |
The time at which data collecting ended. |
|
Total Message Transmission Threshold Exceptions: |
The number of times any node exceeded the specified message transmission threshold during the recording period. |
|
Total Message Transmission Limit Exceptions: |
The number of times any node exceeded the message transmission limit specified for that node during the recording period. |
|
Remote Deliveries Rescheduled: |
The number of messages that were rescheduled because of transmission difficulties or space limitations on the remote node during the recording period. |
|
Maximum Simultaneous Channels: |
The greatest number of networking channels that were active simultaneously during the recording period. |
|
Total Incoming Calls Unanswered: |
The number of incoming calls that could not be answered because too many networking channels were in use when the call came in. |
|
Total Remote Undeliverable Messages: |
The total number of messages that were rejected for delivery to a remote machine because, for example, the remote subscriber is not defined to the local machine. |
