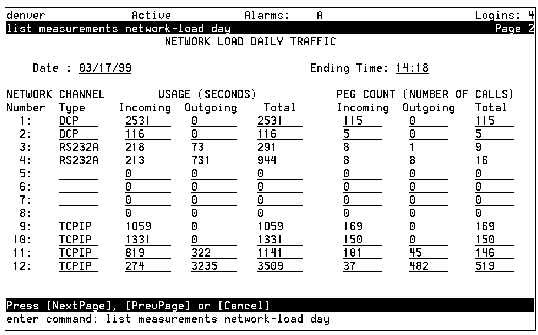

Table: Field Definitions: Network Load Daily Traffic Screen, Page 2
|
Field Name |
Description/Procedure |
|
NETWORK CHANNEL |
|
Number |
The maximum available
nodes for an INTUITY AUDIX LX system.
|
|
Type: |
The administered networking channels. If the network channel type is administered during the record collection period, the new channel type is shown. |
|
USAGE (SECONDS) |
|
Incoming Outgoing Total |
The number of seconds that each network channel was active with incoming and outgoing calls during the recording period. The total seconds of activity are also provided. |
|
PEG COUNT (NUMBER OF CALLS) |
|
Incoming Outgoing Total |
The number of incoming and outgoing calls on each network channel during the recording period. The total number of calls is also provided. |
