Table: Field Definitions:

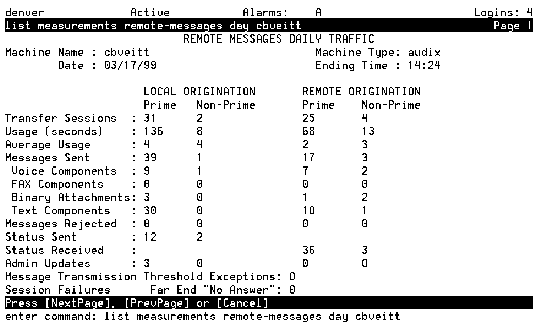

Remote Messages Daily Traffic Screen
|
Field Name
|
Description/Procedure
|
|
Machine Name:
|
The name of the remote
machine you entered on the command line.
|
|
Machine Type:
|
The type of remote machine,
for example, calld, AUDIX, and so on.
|
|
Date:
|
The starting date for
which traffic data was collected for the report.
It is the date you entered on the command
line or the current date if you did not specify
a date.
If you enter a date previous
to the current date, each day's record is
presented as an additional page (screen).
Press F7 (NextPage) and F8 (PrevPage) to scroll
through each daily report record.
|
|
Ending Time:
|
The time at which data
collecting ended.
|
|
LOCAL ORIGINATION
|
|
Prime/Non-Prime
|
Whether message transmission
came from the local AUDIX machine during a
period specified as prime or nonprime time.
|
|
Transfer Sessions:
|
The number of message
transfer sessions that occurred during the
reporting period. For AMIS analog messages,
each transmission or reception session is
pegged as a transfer session.
|
|
Usage (seconds):
|
The total number of seconds
for all message transfer sessions that occurred
during the reporting period. AMIS analog messages
are included in this total.
|
|
Average Usage:
|
The average length, in
seconds, of a message transfer session. AMIS
analog messages are included in this total.
|
|
Messages Sent:
|
The total number of messages
sent from the local AUDIX machine to the remote
AUDIX machine. AMIS analog messages are included
in this total.
|
|
Voice Components:
|
The total number of voice
components sent from the local AUDIX machine
to the remote AUDIX machine. AMIS analog messages
are included in this total.
|
|
FAX Components:
|
The total number of fax
components sent from the local AUDIX machine
to the remote AUDIX machine. Call delivery
messages are included in this total.
|
|
Binary Attachments:
|
The total number of binary
attachments sent from the local AUDIX machine
to the remote AUDIX machine.
|
|
Text Components:
|
The total number of text
components sent from the local AUDIX machine
to the remote AUDIX machine.
|
|
Messages Rejected:
|
The total number of messages
rejected by the local AUDIX machines during
the reporting period. AMIS analog messages
are included in this total. For call delivery
machines, if there is no positive confirmation,
the message is recorded as rejected.
|
|
Status Sent:
|
The total number of status
reports sent by the local AUDIX machine to
the remote AUDIX machine for messages originated
by the remote AUDIX machine. This number equals
0 for call delivery machines.
|
|
Status Received:
|
Not applicable.
|
|
Admin Updates:
|
The total number of administration
updates (name, voice name, extension, community
changes, add and delete local subscribers)
sent from the local AUDIX machine to the remote
AUDIX machine. This field applies to digital
network machines only.
|
|
REMOTE ORIGINATION
|
|
Prime/Non-Prime
|
Whether message transmission
came from the remote AUDIX machine during
a period specified as prime or nonprime time.
|
|
Transfer Sessions:
|
The number of message
transfer sessions that occurred during the
reporting period. For AMIS analog messages,
each transmission or reception session is
pegged as a transfer session.
|
|
Usage (seconds):
|
The total number of seconds
for all message transfer sessions that occurred
during the reporting period. AMIS analog messages
are included in this total.
|
|
Average Usage:
|
The average length, in
seconds, of a message transfer session. AMIS
analog messages are included in this total.
|
|
Messages Sent:
|
The total number of messages
sent from the remote AUDIX machine and received
by the local AUDIX machine during the reporting
period. AMIS analog messages are included
in this total.
|
|
Voice Components:
|
The total number of voice
components sent from the remote AUDIX machine
and received by the local AUDIX machine during
the reporting period. AMIS analog messages
are included in this total.
|
|
FAX Components:
|
The total number of voice
components sent from the remote AUDIX machine
and received by the local AUDIX machine during
the reporting period. Call delivery messages
are included in this total.
|
|
Binary Attachments:
|
The total number of binary
attachments sent from the remote AUDIX machine
and received by the local AUDIX machine during
the reporting period.
|
|
Text Components:
|
The total number of text
components sent from the remote AUDIX machine
and received by the local AUDIX machine during
the reporting period.
|
|
Messages Rejected:
|
The total number of messages
rejected by the local and remote AUDIX machines
during the reporting period. AMIS analog messages
are included in this number. For call delivery
machines, if there is no positive confirmation,
the message is recorded as rejected.
|
|
Status Sent:
|
Not applicable.
|
|
Status Received:
|
The total number of status
reports received by the local AUDIX machine
for messages that the local machine sent to
the remote AUDIX machine. This field is not
applicable for AMIS analog messages.
|
|
Admin Updates:
|
The total number of administration
updates (name, voice name, extension, community
changes, add and delete local subscribers)
sent from the remote AUDIX machine to the
local AUDIX machine. This field applies to
digital network machines only.
|
|
Message Transmission Threshold
Exceptions:
|
The number of times the
local node exceeded its message transmission
threshold. This field is not applicable for
AMIS analog machines.
|
|
Session Failures Far End
"No Answer":
|
The number of unsuccessful
call attempts from the local AUDIX machine
to the remote AUDIX machine. AMIS analog session
failures are included in this count.
|
