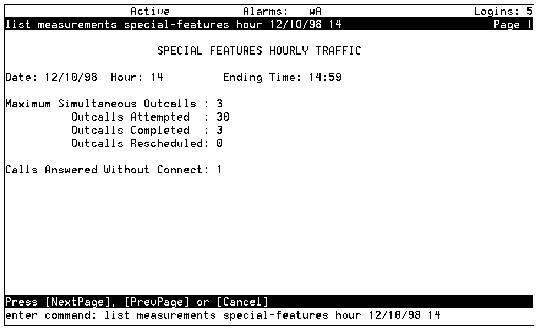

Table: Field Definitions: Special Features Hourly Traffic Screen
|
Field Name |
Description/Procedure |
|
Date: |
The starting date for which
traffic data was collected for the report.
It is the date you entered on the command
line or the current date if you did not specify
a date.
If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record. |
|
Hour |
The starting hour for which
traffic data was collected for the report.
It is the hour you entered on the command
line or the current hour if you did not specify
an hour.
|
|
Ending Time: |
The time at which data collecting ended. |
|
Maximum Simultaneous Outcalls: |
The largest number of ports that were simultaneously used for outcalling during the reporting period. |
|
Outcalls Attempted: |
The number of outcalls tried during the reporting period. |
|
Outcalls Completed: |
The number of successful outcalls during the reporting period. |
|
Outcalls Rescheduled: |
The number of outcalls that were rescheduled when an outcall attempt failed due to all ports being busy. |
|
Calls Answered Without Connect: |
The number of calls answered without a switchlink connect message. |
