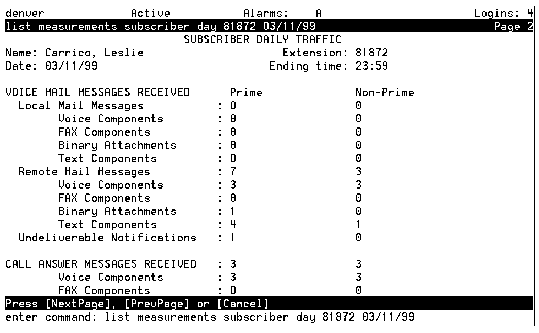

Table: Field Definitions: Subscriber Daily Traffic Screen, Page 2
|
Field Name |
Description/Procedure |
|
Name: |
The name of the subscriber whose
traffic information is being reported. It
is the name you entered on the command line
or the name corresponding to the subscriber's
extension, if you entered the extension.
|
|
Extension: |
The extension of the subscriber
whose traffic information is being reported.
This is the extension you entered on the command
line or the extension corresponding to the
subscriber's name, if you entered the name.
|
|
Date: |
The starting date for which
traffic data was collected for the report.
It is the date you entered on the command
line or the current date if you did not specify
a date.
If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record. |
|
Ending Time: |
The time at which data collecting ended. |
|
VOICE MAIL MESSAGES RECEIVED |
|
Local Mail Messages, Prime Local Mail Messages, Non-Prime |
The number of messages received by the subscriber during prime and nonprime hours during the reporting period. |
|
Voice Components: |
The number of voice components received by the subscriber during prime and nonprime hours during the reporting period. |
|
FAX Components: |
The number of fax components received by the subscriber during prime and nonprime hours during the reporting period. |
|
Binary Attachments: |
The number of binary attachments received by the subscriber during prime and nonprime hours during the reporting period. |
|
Text Components: |
The number of text components received by the subscriber during prime and nonprime hours during the reporting period. |
|
Remote Mail Messages, Prime Remote Mail Messages, Non-Prime |
The number of messages received by the subscriber from remote machines during prime and nonprime hours during the reporting period. |
|
Voice Components: |
The number of voice components received by the subscriber from remote machines during prime and nonprime hours during the reporting period. |
|
FAX Components: |
The number of fax components received by the subscriber from remote machines during prime and nonprime hours during the reporting period. |
|
Binary Attachments: |
The number of binary attachments received by the subscriber from remote machines during prime and nonprime hours during the reporting period. |
|
Text Components: |
The number of text components received by the subscriber from remote machines during prime and nonprime hours during the reporting period. |
|
Undeliverable Notifications, Prime Undeliverable Notifications, NonPrime |
The number of times a subscriber was alerted that a message was undeliverable during prime and nonprime hours during the reporting period. |
|
CALL ANSWER MESSAGES RECEIVED |
|
Prime Non-Prime |
The number of new call answer messages accumulated in the subscriber's mailbox during prime and nonprime hours during the reporting period. |
|
Voice Components: |
The number of new voice components accumulated in the subscriber's mailbox during prime and nonprime hours during the reporting period. |
|
FAX Components: |
The number of new fax components accumulated in the subscriber's mailbox during prime and nonprime hours during the reporting period. |
