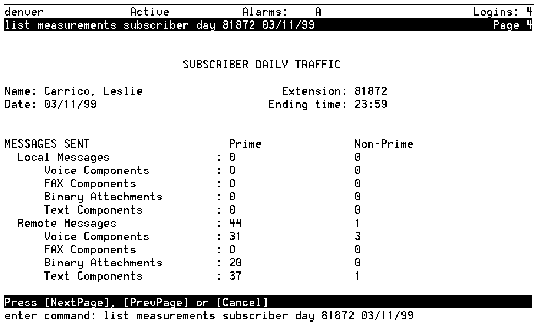

Table: Field Definitions: Subscriber Daily Traffic Screen, Page 4
|
Field Name |
Description/Procedure |
|
Name: |
The name of the subscriber
whose traffic information is being reported.
It is the name you entered on the command
line or the name corresponding to the subscriber's
extension if you entered the extension.
|
|
Extension: |
The extension of the subscriber
whose traffic information is being reported.
This is the extension you entered on the command
line or the extension corresponding to the
subscriber's name if you entered the name.
|
|
Date: |
The starting date for which
traffic data was collected for the report.
It is the date you entered on the command
line or the current date if you did not specify
a date.
If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record. |
|
Ending Time: |
The time at which data collecting ended. |
|
MESSAGES SENT |
|
Local Messages, Prime Local Messages, NonPrime |
The number of messages sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
Voice Components: |
The number of voice components sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
FAX Components: |
The number of fax components sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
Binary Attachments: |
The number of binary attachments sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
Text Components: |
The number of text components sent to local subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
Remote Messages, Prime Remote Messages, Non-Prime |
The number of messages sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
Voice Components: |
The number of voice components sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
FAX Components: |
The number of fax components sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
Binary Attachments: |
The number of binary attachments sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period. |
|
Text Components: |
The number of text components sent to remote subscribers by the subscriber during prime and nonprime hours during the reporting period. |
