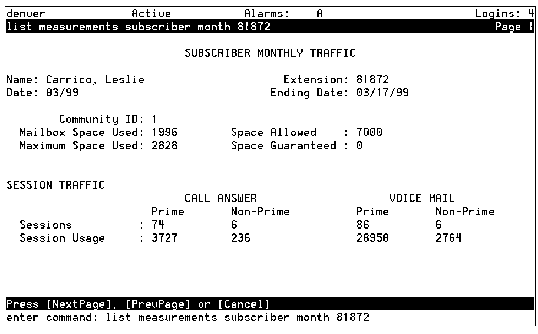

Table: Field Definitions: Subscriber Monthly Traffic Screen, Page 1
|
Field Name |
Description/Procedure |
|
Name: |
The subscriber whose traffic
information is being reported. It is the name
you entered on the command line or the name
corresponding to the subscriber's extension
if you entered the extension.
|
|
Extension: |
The extension of the subscriber
whose traffic information is being reported.
This is the extension you entered on the command
line or the extension corresponding to the
subscriber's name if you entered the name.
|
|
Date: |
The starting month and year
for which traffic data was collected for the
report. It is the month you entered on the
command line or the current month if you did
not specify a month.
If you enter a month previous to the current month, each month's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each monthly report record. |
|
Ending Date: |
The month, day, and year
at which data collection ended.
|
|
Community ID: |
The number of the community to which the subscriber belongs. |
|
Mailbox Space Used: |
The amount of message space (in seconds) in use by the subscriber at the end of the reporting period. |
|
Space Allowed: |
The maximum mailbox size (in seconds) administered for this subscriber during the reporting period. |
|
Maximum Space Used: |
The maximum amount of message space (in seconds) in use at any given time during the reporting period. |
|
Space Guaranteed: |
The minimum message space (in seconds), if any, guaranteed for the subscriber's mailbox during the reporting period. |
|
CALL ANSWER Sessions, Prime Sessions, Non-Prime |
The number of times callers were redirected to the AUDIX system to leave a call answer message during prime and nonprime hours during the reporting period. |
|
VOICE MAIL Sessions, Prime Sessions, Non-Prime |
The number of times the subscriber successfully logged in to AUDIX during prime and nonprime hours during the reporting period. |
|
CALL ANSWER Session Usage, Prime Session Usage, Non-Prime |
The total duration (in seconds) of calls to the subscriber during prime and nonprime hours during the reporting period. |
|
VOICE MAIL Session Usage, Prime Session Usage, Non-Prime |
The total duration (in seconds) of time the subscriber was logged in to AUDIX during prime and nonprime hours during the reporting period. |
