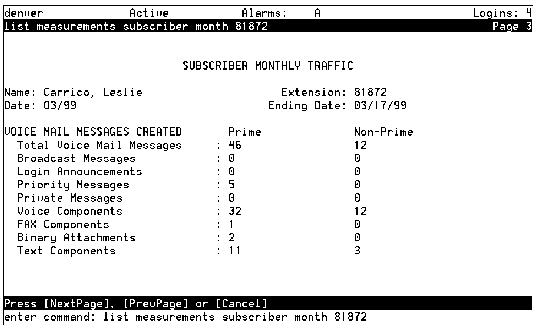

Table: Field Definitions: Subscriber Monthly Traffic Screen, Page 3
|
Field Name |
Description/Procedure |
|
Name: |
The name of the subscriber
whose traffic information is being reported.
It is the name you entered on the command
line or the name corresponding to the subscriber's
extension if you entered the extension.
|
|
Extension: |
The extension of the subscriber
whose traffic information is being reported.
This is the extension you entered on the command
line or the extension corresponding to the
subscriber's name if you entered the name.
|
|
Date: |
The starting month and year
for which traffic data was collected for the
report. It is the month you entered on the
command line or the current month if you did
not specify a month.
If you enter a month previous to the current month, each month's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each monthly report record. |
|
Ending Time: |
The month, day, and year at which data collecting ended. |
|
VOICE MAIL MESSAGES CREATED |
|
Total Voice Mail Messages, Prime Total Voice Mail Messages, NonPrime |
The total number of messages created by the subscriber during prime and nonprime hours during the reporting period. |
|
Broadcast Messages, Prime Broadcast Messages, Non-Prime |
The number of broadcast messages created by the subscriber during prime and nonprime hours during the reporting period. |
|
Login Announcements, Prime Login Announcements, Non-Prime |
The number of login announcements created by the subscriber during prime and nonprime hours during the reporting period. |
|
Priority Messages, Prime Priority Messages, NonPrime |
The number of priority messages created by the subscriber during prime and nonprime hours during the reporting period. |
|
Private Messages, Prime Private Messages, NonPrime |
The number of private messages created by the subscriber during prime and nonprime hours during the reporting period. |
|
Voice Components: |
The number of voice components created by the subscriber during prime and nonprime hours during the reporting period. |
|
FAX Components: |
The number of fax components created by the subscriber during prime and nonprime hours during the reporting period. |
|
Binary Attachments: |
The number of binary attachments created by the subscriber during prime and nonprime hours during the reporting period. |
|
Text Components: |
The number of text components created by the subscriber during prime and nonprime hours during the reporting period. |
