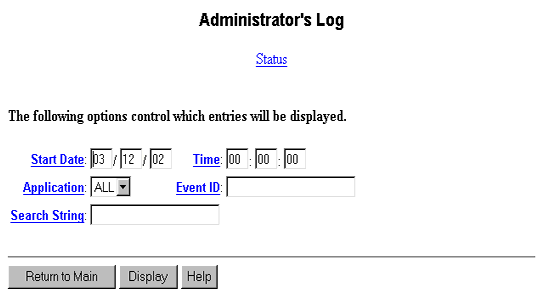

Administrator's Log Page; Specifying Information
for a Report
Table: Field Definitions:
Administrator's Log page
Field
Name
Valid Input
Description/Procedure
Start Date:
A calendar date in the format
mm/dd/yy
The beginning date for the
log report. If you leave this field blank, all
qualifying alarms are displayed.
The default value is the
date that this page was last used. (This pagelastused
date is preserved across restarts.)
Time:
A 24-hour clock time in
the format hh:mm
The beginning hour and minute
that the report begins. The Start Date:
field must have valid entries before you can
use this field. If the Time: field
is blank, all alarms for the specified start
date are displayed.
The default value is the
time that this page was last used. (This pagelastused
time is preserved across restarts.)
Application:
Blank
AS, EL, MT, SM, VM, or VP
The two-character application
code for the administration log entry:
(blank) All applications
AS= Access Security Gateway
EL= Enhanced List Application
MT = Maintenance
SM= Station Manager
SW= Switch Integration
VM = Messaging (voice mail, fax mail, and
email messages)
VP = Voice Platform
Event ID:
From 1 to 14
alphanumeric characters
The event ID for a specific
event. A blank field displays all event types.
See Alarms and
Events for a list
of valid administration event IDs.
Search String:
From 1 to 78 characters
A text string that you want
the system to search for in the administrator's
log entries. The system searches the Message
field of the administrator's log for matching
text.
