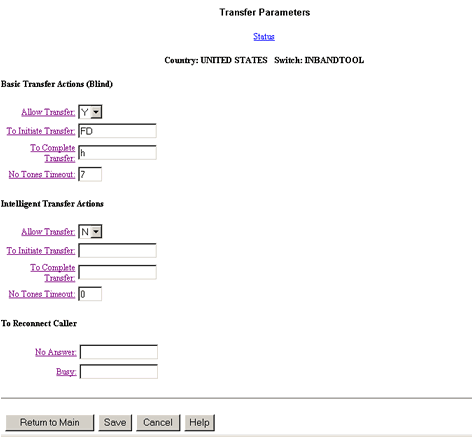

Transfer Parameters Page





Table: Transfer Parameters Page— Field Descriptions�

Field	Description	Values
Country:	Displays the country set on the Switch Selection page.	Display only.
Switch:	Displays the switch type set on the Switch Selection page.	Display only.
Basic Transfer Actions (Blind)
Allow Transfer:	Indicates whether blind transfer is allowed.	Y to allow. N to prohibit.
To Initiate Transfer:	Specifies the sequence needed by the switch to begin blind call transfers.	F — Switch hook flash. W — Wait for dial tone. P — Pause (waits for approximately 5�seconds). [0-9, #, *] — Transmit that touch-tone digit. H — Hang up. S — Wait for stutter tone. l — Truncate leading digits.
To Complete Transfer:	Specifies the sequence needed by the switch to end blind call transfers.
No Tones Timeout:	Specifies the sequence needed by the switch to reconnect a caller during a blind call transfer if the called number is no tones timeout.
Intelligent Transfer Actions
Allow Transfer:	Note: These fields are not used for the INTUITY AUDIX system.
To Initiate Transfer:
To complete Transfer:
No tones Timeout:
To Reconnect Caller
No Answer:	Note: These fields are not used for the INTUITY AUDIX system.
Busy:
No Tones Timeout:
