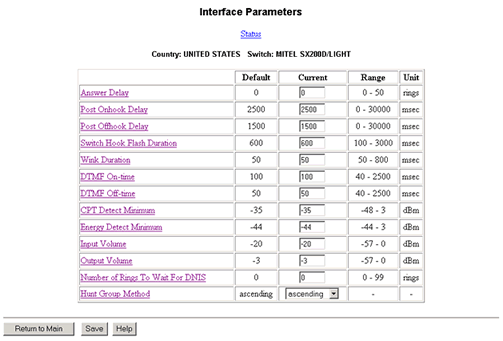

Field
|
Description
|
Values
|
|
Answer Delay:
|
Number of rings for the INTUITY system to
delay before answering a call. (The delay can be regulated in
your country.)
|
Range is 0–50�rings. Usually set at 0
to�2.
|
|
Post Onhook Delay:
|
Delay in the acknowledgment response to a
request to go onhook. (If set too high, calls are not disconnected
soon enough upon hangup, and system subscribers may have to wait
too long to proceed.)
|
Range is 0–30000�msec in increments of
20�msec. Usually set at 2000.
|
|
Post Offhook Delay:
|
Delay in the acknowledgment response to a
request to go offhook. (If set too high, the end user may be forced
to wait too long after picking up the receiver to proceed.)
|
Range is 0–30000�msec in increments of
20�msec. Usually set at 1500.
|
|
SwitchHook Flash Duration:
|
Sets the duration for the switch hook flash
to be recognized by the switch. (If the duration is too short,
all transfers out of INTUITY Audix system will fail.)
|
Range 100–2000�msec in increments of
10�msec.
|
|
Wink Duration:
|
Specifies the minimum duration of the loss
of loop current that the switch recognizes to signify a disconnect,
if disconnect signaling is done using wink. (If set to low, disconnects
will not occur.)
|
Range 80–800�msec in increments of 10
msec. Usually set at 300.
|
|
DTMF On-time:
|
Output DTMF tone duration for auto dialing.
(The duration can be regulated in your country.)
|
Range is 20–30000 msec in increments
of 10�msec. Usually set at 100.
|
|
DTMF Off-time:
|
Output DTMF interdigit pause for auto dialing.
(The duration can be regulated in your country.)
|
Range is 20–30000 msec in increments
of 10�msec. Usually set at 60.
|
| CPT Detect Minimum |
The minimum detection level for call progress tones.
(If set too low, the system can detect noise on the line as tone.
If set too high, actual tones mught not be detected.) |
Range is –48 to 3 dBm in increments of 0.1 msec. Usually
set at –35. |
| Energy Detect minimum |
Minimun energy level needed to classify speech energy
used in answer detection. (If set too high, the answer might not
be detected. If set too low, false detection may occur). |
Range is –48 to 3 dBm in increments of 0.1 msec. Usually
set at –38. |
| Input Volume |
Specifies the incoming speech volume for INTUITY messages
and prompts. If the volume is too low, messages might not be clearly
audible. If too high, messages could be unacceptably loud to subscribers;
clipping and hence distortion could occur. Normally, the default
parameters provide appropriate volume levels; however, certain line
characteristics may make changes necessary.See Volume
Loss and Gain Settings in Input Volume and
Output Volume below. |
Range is 500–5000�dB in increments of 10�dB. Suggested value
is 4000 (12�dB). |
|
Output volume:
|
Specifies outgoing speech volume.
This parameter controls the playback level
of recorded messages and prompts. See Volume
Loss and Gain Settings in Input Volume and
Output Volume below. |
Range is 500–5000�dB in increments of
10�dB. Suggested value is 1000 (0�dB).
|
| Number of Rings To Wait For DNIS |
Specifies the number of tries to obtain DNIS on a
Tip/Ring channel before running a default script (if any). The default
is 2 rings. |
Range from 0 to 99. |
| Hunt Group Method |
Specifies the order of hunting for idle channels.
(This value can affect the results of traffic analysis) |
Ascending
Descending
Random
|
