Administering Switch Integration
|
You need configuration notes or a switch integration worksheet to perform
the steps in this section. This section includes steps for the following
processes:
- Administering OverLAN (also known as C-LAN) Switch Integration
- Administering Inband Switch Integration
Perform this procedure if you need to change the extension length from
the default of 4 digits or if you are going to be using a switch integration.
Use one of the following subsections, based on whether you are doing and
OverLAN (also known as C-LAN) integration or an Inband integration.
OverLAN Using the Switch Integration Forms
- From the web-based Administration Main Menu, select:
Switch Administration
Switch Link Administration

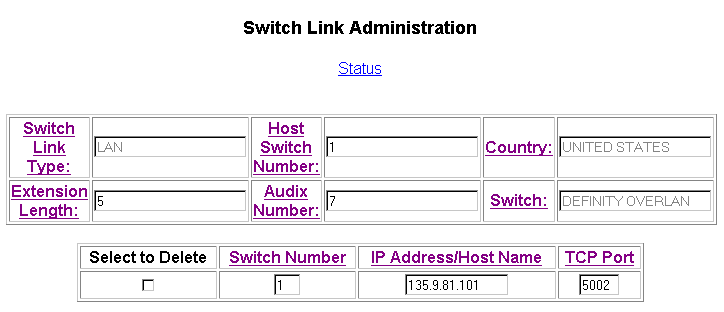

- Make the following field settings, as shown on the example screen,
and then click Update.
| Field |
Setting |
| Switch Link Type |
LAN |
| Extension Length |
Setting provided by the site system administrator. |
| Host Switch Number |
Determined by the site system administrator. This
is the same as the "host link number." |
| AUDIX Number |
Determined by the site system administrator. This
is also known as the "adjunct number." |
| Country |
Matches the country name chosen on the Switch
Selection page. |
| Switch |
Matches the switch type from the Switch Selection
page. |
| Switch Number |
This is the same as the Host Switch Number. |
| IP Address/Host Name |
This is the IP address of the switch. |
| TCP Port |
5002 |
- If you have more than one switch to add, click Add and complete
the additional fields of information.
- Then click Update.
The system displays a confirmation message that the added or updated
information is accepted.
- Stop and start the Messaging Software (voice system).
- Switch integrations is complete, skip to the next section, Initial
System Administration.
InBand from the Menus
From the main menu select "Switch Administration", "Dial
Plan Translation".
Change the extension length if you need to and then adjust the digits
for the extension range on your switch. So I use 5 digits and set it
for 00000 through 99999. Set your switch number which is most likely
to be 1 and then Remote which is most likely to be No.
Stop and start the voice system.
