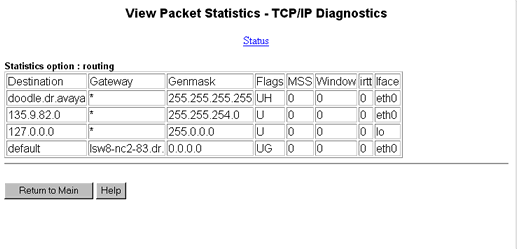

Table: Field Definitions: Routing Statistics
|
Column
|
Description
|
| Destination |
The destination network or host. |
| Gateway |
The gateway address. |
| Genmask |
The netmask for the destination network. |
| Flags |
The possible flags are:
U: Route is up
H: Target is a host
G: Use gateway
R: Reinstate route for dynamic routing
D: Dynamically installed by daemon or redirect
M: Modified from routing daemon or redirect
A: Installed by addrconf
C: Cache entry
I: Reject route |
| MSS |
The maximum segment size for the TCP connections
over this route. |
| Window |
The default window size for TCP connections
over this route. |
| irtt |
The initial RTT (round trip time). |
| iface |
The interface to which packets for this
route will be sent. |
