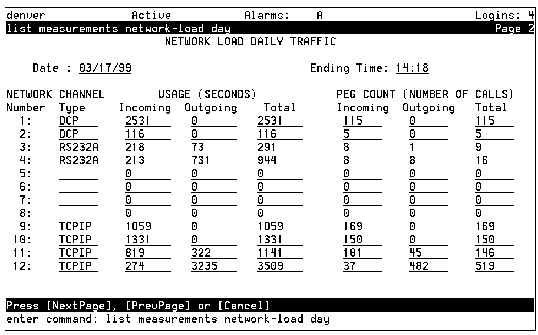

Table: Field Definitions: Network Load Daily Traffic Screen, Page 2
| Field Name |
Description/Procedure |
| NETWORK CHANNEL |
| Number |
The maximum available nodes for an INTUITY AUDIX Release 5 system. |
| Type: |
The administered networking channels. If the network channel type is administered during the record collection period, the new channel type is shown. |
| USAGE (SECONDS) |
| Incoming Outgoing Total |
The number of seconds that each network channel was active with incoming and outgoing calls during the recording period. The total seconds of activity are also provided. |
| PEG COUNT (NUMBER OF CALLS) |
| Incoming Outgoing Total |
The number of incoming and outgoing calls on each network channel during the recording period. The total number of calls is also provided. |
