| Field |
Description |
Values |

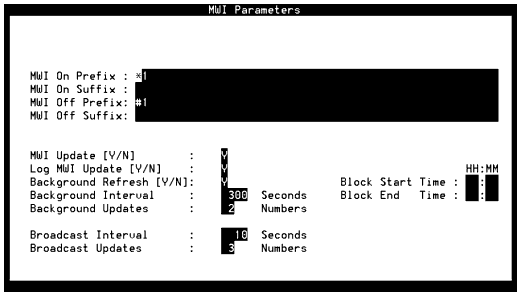

| <switch> Integration |
Displays the switch selected on the Switch Selection window. |
Display only. |
| MWI on prefix
|
A string added before the extension to turn on MWI indication. |
Maximum of 20 alphanumeric characters. |
| MWI on suffix
|
A string added after the extension to turn on MWI indication. |
| MWI off prefix
|
A string added before the extension to turn off MWI indication. |
| MWI off suffix
|
A string added after the extension to turn off MWI indication. |
| MWI Update [Y/N]
|
Specifies whether the INTUITY AUDIX system instructs the switch to perform MWI updates. |
Remote support center adjustment only. |
| Background Refresh [Y/N]
|
Specifies whether the MWI status for each extension status is periodically checked and updated. |
Remote support center adjustment only. |
| Background Interval
|
Sets the interval between MWI background updates for non-broadcast messages. |
Remote support center adjustment only. |
| Background Updates
|
Sets the number of background updates done in the interval entered in the Background Interval field. |
Remote support center adjustment only. |
| Broadcast Interval
|
Sets the interval between MWI background updates for broadcast messages. |
Remote support center adjustment only. |
| Broadcast Updates
|
Sets the number of broadcast updates done in the interval entered in the Broadcast Interval field. |
Remote support center adjustment only. |
| Block Start Time
|
Sets the time when blocking of MWI updates begins. |
Format HH/MM/SS, where: HH is the hour in the 24-hour system (range 0 to 23). MM is the minute (range 0 to 59). SS is the second (range 0 to 59). |
| Block End Time
|
Sets the time when blocking of MWI updates ends. |
