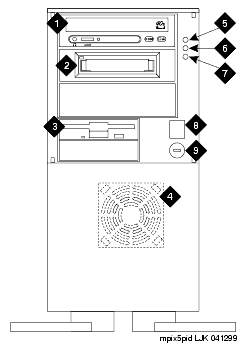

Figure: Front View with the Dress Cover Removed (MAP/5P and MAP/5PV3)

Figure: Front View with the Dress Cover Removed (MAP/5P and MAP/5PV3)

See the table below for a description of each component.

Component

Description

CD-ROM drive

Provides random access to the operating system, application software, and speech data

Tape drive

Used to back up and restore files

Diskette drive

Provides storage and random access to the operating system, application software, and speech data

Circuit card cage fan

Maintains air flow inside the computer to prevent overheating

Disk activity indicator

LED; lights green when the hard disk is active

Speed indicator (MAP/5P only) or power available indicator (MAP/5PV3 only)

Speed LED; lights green when the power is on

Power available LED; lights green when power is connected and available for the system to use

Power indicator

LED; lights green when the power is on

Power switch

Used to turn the computer on and off

Reset switch

Used to reset the computer

Component	Description
	CD-ROM drive	Provides random access to the operating system, application software, and speech data
	Tape drive	Used to back up and restore files
	Diskette drive	Provides storage and random access to the operating system, application software, and speech data
	Circuit card cage fan	Maintains air flow inside the computer to prevent overheating
	Disk activity indicator	LED; lights green when the hard disk is active
	Speed indicator (MAP/5P only) or power available indicator (MAP/5PV3 only)	Speed LED; lights green when the power is on Power available LED; lights green when power is connected and available for the system to use
	Power indicator	LED; lights green when the power is on
	Power switch	Used to turn the computer on and off
	Reset switch	Used to reset the computer
