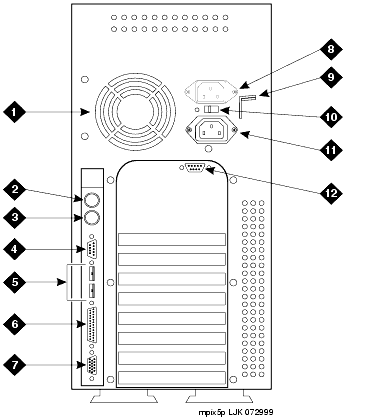

| Component |
Description |
| 1 |
Power supply fan exhaust |
Maintains air flow within the chassis |
| 2 |
Keyboard connector |
Connects the keyboard to the computer through a 6-pin female circular DIN plug |
| 3 |
Mouse connector |
Not used |
| 4 |
COM1 |
Provides RS-232 connectivity through a 9-pin male
D subminiature plug |
| 5 |
COM2 (MAP/5P only) or USB ports (MAP/5PV3 only) |
COM2 is reserved for Avaya remote support; the USB ports are not used |
| 6 |
Parallel port |
Communicates with the printer through a 25-pin female plug |
| 7 |
Video connector |
Connects the computer to the monitor through a 15-pin female D subminiature plug |
| 8 |
AC power supply outlet (MAP/5P only) |
Connects the computer to the monitor using a 6-foot
(2-meter) power cord |
| 9 |
Dress cover lock |
Secures the dress cover |
| 10 |
Voltage selector switch |
Slides right and left to select either 110-V or 235-V power source compatibility |
| 11 |
AC power inlet receptacle |
Connects the computer to the power source through a power cord |
| 12 |
COM2 (MAP/5PV3 only) |
Reserved for Avaya remote support |
