Table: MAP/5P CMOS Setup Utility Values
| Option |
Setting |
| Basic System Configuration |
| Date |
month/day/year (as required) |
| Time |
hour/minutes/seconds (as required) |
| Diskette Drive A |
1.44 MB 3.5-inch |
| Diskette Drive B |
None |
| IDE Drive 0 (8063 MB) |
Auto, Cylinder: 16383, Head: 16, Sector: 63 |
| IDE Drive 1 (0 MB) |
Auto, Cylinder: 0, Head: 0, Sector: 0 |
| IDE Drive 2 (0 MB) |
Auto, Cylinder: 0, Head: 0, Sector: 0 |
| IDE Drive 3 (0 MB) |
Auto, Cylinder: 0, Head: 0, Sector: 0 |
| Onboard IDE Controller |
Enabled |
| Total Memory |
128 MB |
| Basic System Configuration, Enhanced IDE Features (Page Down) |
| Hard Disk Block Mode |
Enabled |
| Advanced PIO Mode |
Enabled |
| Hard Disk Size > 504MB |
Enabled |
| Hard Disk 32 Bit Access |
Disabled |
| Large Memory Support Mode |
Normal |
| Num Lock After Boot |
Enabled |
| Memory Test |
Enabled |
| Quiet Boot |
Enabled |
| Configuration Table |
Disabled |
| Advanced System Configuration |
| Internal Cache (CPU Cache) |
Enabled |
| External Cache |
Enabled |
| Cache Scheme |
Write Back |
| ECC/Parity Mode Selection |
ECC |
| Memory at 15MB-16MB Reserved for |
System Use |
| Power Saving Configuration |
| Power Management Mode |
Disabled |
| Power Saving Operation Mode |
Traditional |
| IDE Hard Disk Standby Timer |
Off |
| Monitor Power Saving Timer |
Off |
| System Standby Timer |
Off |
| System Suspend Timer |
Off |
| Power Saving Configuration, Monitored Activities |
| IRQ2/IRQ 9 |
Disabled |
| IRQ 3 |
Disabled |
| IRQ 4 |
Disabled |
| IRQ 5 |
Disabled |
| IRQ 7 |
Disabled |
| IRQ 10 |
Disabled |
| IRQ 11 |
Disabled |
| IRQ 12 |
Disabled |
| IRQ 15 |
Disabled |
| QuickStart State Timer |
Off |
| Point Device Location |
None |
| System Security Selection, Disk Drive Control |
| Diskette Drive |
Normal |
| Hard Disk Drive |
Normal |
| System Boot Drive |
Drive A Then C |
| Boot from CD-ROM |
Disabled |
| System Security Selection, Onboard Communication Ports |
| Serial Port 1 Base Address |
3F8h |
| Serial Port 2 Base Address |
Disabled |
| Parallel Port Base Address |
378h(IRQ 7) |
| Operation Mode |
Standard Parallel Port(SSP) Mode |
| ECP DMA Channel |
- |
| Onboard PS/2 Mouse (IRQ 12) |
Disabled |
| Setup Password |
None |
| Power On Password |
None |
| PnP/PCI System Configuration |
| PCI IRQ Setting |
Manual |
| PCI Slot 1 |
INTA 11, INTB 10, INTC --, INTD -- |
| PCI Slot 2 |
INTA 10, INTB --, INTC --, INTD 11 |
| PCI Slot 3 |
INTA --, INTB --, INTC 11, INTD 10 |
| Onboard-Board VGA |
-- |
| PCI IRQ Sharing |
No |
| VGA Palette Snoop |
Disabled |
| Plug & Play OS |
No |
| Rest Resources Assignment |
No |

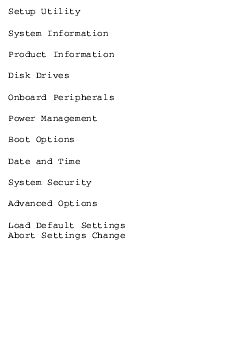

Table: MAP/5PV3 CMOS Setup Utility Values
| Option |
Setting |
| System Information |
| Processor |
Pentium III |
| Processor Speed |
450 MHz |
| Internal Cache |
32 KB, Enabled |
| External Cache |
512 KB, Enabled |
| Floppy Drive A |
1.44MB 3.5-inch |
| Floppy Drive B |
None |
| IDE Primary Channel Master |
Hard Disk, 13030 M.B. |
| IDE Primary Channel Slave |
None |
| IDE Secondary Channel Master |
CD-RW |
| IDE Secondary Channel Slave |
IDE CD-ROM |
| Total Memory |
128 MB |
| 1st Bank |
SDRAM, 128 MB |
| 2nd Bank |
None |
| 3rd Bank |
None |
| (System Information—Page Down) |
| Serial Port 1 |
3F8h, IRQ 4 |
| Serial Port 2 |
Disabled |
| Parallel Port |
378h, IRQ 7 |
| PS/2 Mouse |
None |
| Product Information |
| Product Name |
V66LA |
| System S/N |
00000000000000 or the system's serial number |
| Main Board ID |
V66LA |
| Main Board S/N |
00000000000000 or the systems motherboard serial number |
| System BIOS Version |
V3.2 |
| SMBIOS Version |
2.1 |
| Disk Drives |
| Floppy Drive A |
1.44MB 3.5-inch |
| Floppy Drive B |
None |
| LS-120 drive as |
Normal |
| Disk Drives: IDE Primary Channel Master |
| Type |
Auto |
| Cylinder |
------ |
| Head |
------ |
| Sector |
------ |
| Size |
13030 MB |
| Hard Disk Size > 504MB |
Auto |
| Hard Disk Block Mode |
Auto |
| Advanced PIO Mode |
Auto |
| Hard Disk 32 Bit Access |
Disabled |
| DMA Transfer Mode |
Auto |
| Disk Drives: IDE Primary Channel Slave |
| Type |
Auto |
| Cylinder |
0 |
| Head |
0 |
| Sector |
0 |
| Size |
0 MB |
| Hard Disk Size > 504MB |
Auto |
| Hard Disk Block Mode |
Auto |
| Advanced PIO Mode |
Auto |
| Hard Disk 32 Bit Access |
Disabled |
| DMA Transfer Mode |
Auto |
| Disk Drives: IDE Secondary Channel Master |
| Type |
Auto |
| Cylinder |
0 |
| Head |
0 |
| Sector |
0 |
| Size |
0 MB |
| Hard Disk Size > 504MB |
Auto |
| Hard Disk Block Mode |
Auto |
| Advanced PIO Mode |
Auto |
| Hard Disk 32 Bit Access |
Disabled |
| DMA Transfer Mode |
Auto |
| Disk Drives: IDE Secondary Channel Slave |
| Type |
Auto |
| Cylinder |
0 |
| Head |
0 |
| Sector |
0 |
| Size |
0 MB |
| Hard Disk Size > 504MB |
Auto |
| Hard Disk Block Mode |
Auto |
| Advanced PIO Mode |
Auto |
| Hard Disk 32 Bit Access |
Disabled |
| DMA Transfer Mode |
Auto |
| Onboard Peripherals |
| Serial Port 1 |
Enabled |
| Base Address |
3F8h |
| IRQ |
4 |
| Serial port 2 |
Disabled |
| Base Address |
---- |
| IRQ |
-- |
| Parallel Port |
Enabled |
| Base Address |
378h |
| IRQ |
7 |
| Operation Mode |
Standard |
| ECP DMA Channel |
- |
| Onboard Peripherals: Onboard Device Settings |
| Floppy Disk Controller |
Enabled |
| IDE Controller |
Both |
| PS/2 Mouse Controller |
Disabled |
| USB Host Controller |
Disabled |
| USB Legacy Mode |
----- |
| Power Management |
| Power Management Mode |
Disabled |
| IDE Hard Disk Standby Timer |
--- |
| System Sleep Timer |
----- |
| Sleep Mode |
------- |
| Power Switch < 4 sec. |
Power Off |
| System wake-up event Modem Ring Indicator |
Disabled |
| Boot Options |
| Boot Sequence: 1st. |
Floppy Disk |
| 2nd. |
Hard Disk |
| 3rd. |
IDE CD-ROM |
| First Hard Disk Drive |
IDE |
| Primary Display Adapter |
Onboard |
| Fast Boot |
Disabled |
| Silent Boot |
Disabled |
| Num Lock After Boot |
Enabled |
| Memory Test |
Enabled |
| Configuration Table |
Enabled |
| Date and Time |
| Date |
month day, year as required) |
| Time |
hour:minutes:seconds (as required) |
| System Security |
| Setup Password |
None |
| Power-on Password |
None |
| Operation Mode |
Normal |
| Disk Drive Control: Floppy Drive |
Normal |
| Hard Disk Drive |
Normal |
| Processor Serial Number |
Enabled |
| Advanced Options: Memory/Cache Options |
| Internal Cache (CPU Cache) |
Enabled |
| External Cache |
Enabled |
| Cache Scheme |
Write Through (Fixed field) |
| Memory at 15MB-16MB Reserved for |
System |
| Memory Parity Mode |
ECC |
| C8000h - DFFFFh Shadow |
Disabled |
| Advanced Options: PnP/PCI Options |
| PCI IRQ Setting |
Manual |
| PCI Slot 1 |
INTA 11, INTB 10, INTC --, INTD -- |
| PCI Slot 2 |
INTA 10, INTB --, INTC --, INTD 11 |
| PCI Slot 3 |
INTA --, INTB --, INTC 11, INTD 10 |
| PCI IRQ Sharing |
No |
| VGA Palette Snoop |
Disabled |
| Graphics Aperture Size |
64 MB |
| Plug and Play OS |
No |
| Reset Resource Assignments |
No |
