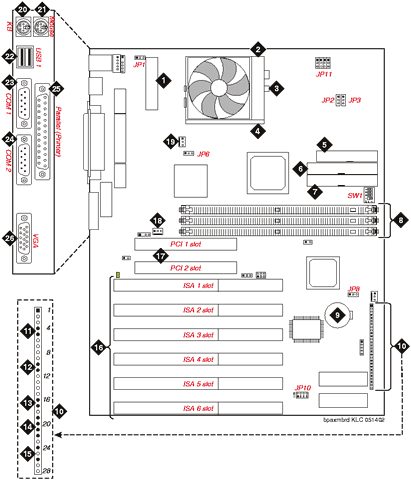

Figure: Motherboard Connections (MAP/5PV4 Only)

  1. ATX power connector
  2. CPU socket (which contains the CPU and the CPU fan)
  3. CPU fan clip
  4. CPU release lever
  5. FDC (diskette) cable connector
  6. Flat ribbon cable 2 (Secondary IDE cable)
  7. Flat ribbon cable 1 (Primary IDE cable)
  8. DIMM sockets (DIMM1, DIMM2, and DIMM3, from top to bottom)
  9. Battery
  10. LEDs and switches
  11. Hard disk drive LED (pins 4 and 5)
  12. ATX power switch (pins 10 and 11)
  13. Reset switch (pins 16 and 17)
  1. Speaker connectors (pins 19–22)
  2. ATX power LED connectors (pins 24 and 26)
  3. ISA slots 1–6
  4. PCI slots 1–2
  5. Chassis fan connector
  6. CPU fan connector
  7. Keyboard connector
  8. Mouse connector
  9. USB connectors
  10. COM1
  11. COM2
  12. Parallel port
  13. VGA (monitor) connector
