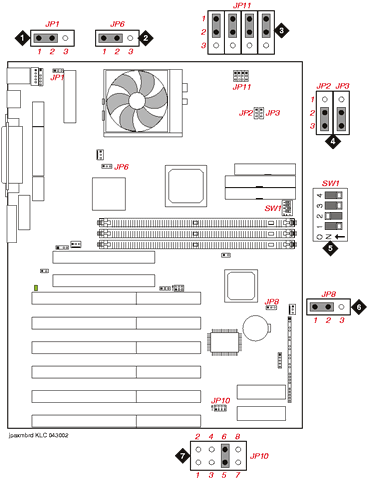

Figure: Motherboard Jumpers and Switch Settings (MAP/5PV4 Only)

1. JP1—Wake-on keyboard/mouse
2. JP6—VGA on Board
3. JP11—CPU Type Select
4. JP2 and JP3—CPU's front side bus select (FSB)
5. SW1—Frequency ratio settings
6. JP8—Clear CMOS data
