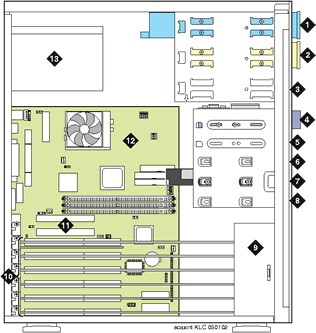

Figure: Internal Layout (MAP/5PV4)


  1. Bay 1—CD-ROM drive
  2. Bay 2—Tape drive
  3. Bay 3—Empty
  4. Bay 4—Diskette drive
  5. Bay 5—Empty
  6. Bay 6—Empty
  7. Bay 7—Hard disk drive
  8. Bay 8—Empty
  9. Circuit card cage fan and cover
  10. ISA slots 1–6 (slot 1 is the top-most slot)
  11. PCI slots 1–2 (slot 1 is the top-most slot)
  12. Motherboard
  13. Power supply
