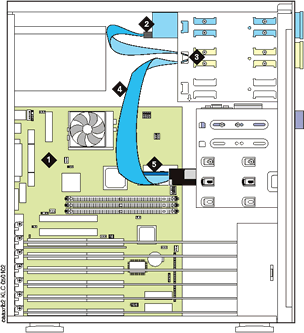

Figure: Flat Ribbon Cable 2 (MAP/5PV4)

Motherboard Flat ribbon cable 2 (Secondary IDE cable) connection to the CD-ROM drive Flat ribbon cable 2 (Secondary IDE cable) connection to the tape drive Flat ribbon cable 2 (Secondary IDE cable) Flat ribbon cable 2 (Secondary IDE cable) connection to the motherboard
