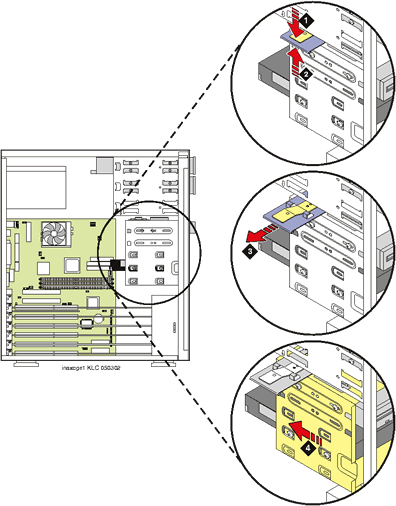

Figure: Removing the Peripheral Frame (MAP/5PV4)

  1. Press down on the thumb tab.
  2. While pressing down on the thumb tab, gently lift the entire thumb-tab mechanism.
  3. Pull the thumb-tab mechanism out away from the peripheral frame.
  4. Slide the peripheral frame towards the back of the chassis and then remove it from the chassis.
