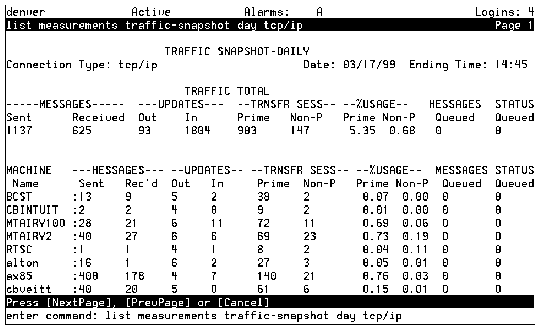

Table: Field Definitions: Traffic Snapshot Daily Screen
|
Field Name |
Description/Procedure |
|
Connection Type: |
The type of network connection:
- Digital = rs232, dcp, or tcp/ip
- Analog = amis or fax
|
|
Date: |
The day of the traffic data; either the date you entered on the command line or the current date. |
|
Ending Time: |
The hour and minute the system stopped collecting data. |
|
TRAFFIC TOTAL |
|
MESSAGES, Sent |
The total number of messages that the local machine sent to all remote machines with this connection type. |
|
MESSAGES, Received |
The total number of messages that the local machine received from all remote machines with this connection type. |
|
UPDATES, Out |
The total number of updates that the local machine sent to all remote machines (for digital connection types only).
Examples of updates are:
name, extension, community ID.
|
|
UPDATES, In |
The total number of updates that the local machine received from all remote machines (for digital connection types only).
Examples of updates are:
name, extension, community ID.
|
|
TRNSFR SESS, Prime |
The total number of transfer sessions with this connection type that occurred during prime time. |
|
TRNSFR SESS, Non-P |
The total number of transfer sessions with this connection type that occurred before or after prime time. |
|
% USAGE, Prime |
The total percentage of usage for this connection type that occurred during prime time. This percentage is the sum of all machine usage. (See the % USAGE, Prime field below.) |
|
% USAGE, Non-P |
The total percentage of usage for this connection type that occurred before or after prime time. This percentage is the sum of all machine usage. (See the % USAGE, Non-P field below.) |
|
MESSAGES, Queued |
The total number of messages currently in the queue to send to all remote machines with this connection type. |
|
STATUS, Queued |
The total number of status messages currently in the queue to send to all remote machines with this connection type. |
|
Machine Name |
The name of each remote machine with this connection type. |
|
MESSAGES, Sent |
The number of messages that the local machine sent to the remote machine. |
|
MESSAGES, Rec'd |
The number of messages that the local machine received from the remote machine. |
|
UPDATES, Out |
The number of updates that the local machine sent to the remote machine. |
|
UPDATES, In |
The number of updates that the local machine received from the remote machine. |
|
TRNSFR SESS, Prime |
The number of transfer sessions that occurred during prime time. |
|
TRNSFR SESS, Non-P |
The number of transfer sessions that occurred before or after prime time. |
|
% USAGE, Prime |
The percentage of time
the machine used the network during prime
time. The system calculates this percentage
by: (1) multiplying the number of prime time
hours by the number of ports; (2) then dividing
the total usage by the result of step 1. (The
system gets the total usage from the Remote
Messages Daily Traffic report.)
|
|
% USAGE, Non-P |
The percentage of time the machine used the network before or after prime time. The system uses the same formula for calculating prime and nonprime time usages. However, for this field, it uses nonprime time hours. |
|
MESSAGES, Queued |
The number of messages currently in the queue to send to the remote machine. |
|
STATUS, Queued |
The number of status messages currently in the queue to send to the remote machine. |
