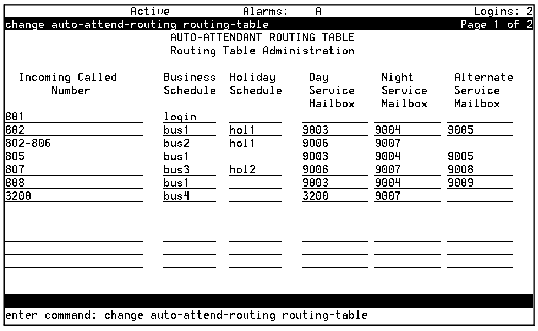

Table: Field Definitions: Auto-Attendant Routing Table Screen
| Field Name |
Valid Input |
Description/Procedure |
| Incoming Called Number |
1- to 8-alphanumeric characters |
The numbers to be redirected. These can be any incoming numbers reported to AUDIX by the switch, for example, perhaps an incoming trunk number or an extension number that the caller dialed. If a number appears twice in this column, the first instance prevails. For example, 802 appears before the range 802–806, and is treated separately per its first appearance. However, 805 appears after the range of numbers, so it is treated as set out on the line associated with the range, and ignored. |
| Business Schedule |
- 1- to 8-
alphanumeric characters
- 1-4
|
The name or number of the business schedule that determines how the incoming number is treated. The name login is reserved to indicate that a direct, external call to the associated incoming number is allowed to log in; that is, if you call in over this trunk, AUDIX asks you to log in. |
| Holiday Schedule |
- 1- to 8-
alphanumeric characters
- 1-4
|
The name or number of the holiday schedule (if any) that determines how the incoming number is treated on holidays. |
| Day Service Mailbox |
An existing mailbox extension |
All automated attendant mailbox extensions must be defined before they can be entered in these columns. Type the extension number of the automated attendant mailbox to be accessed during the business hours given in the business schedule. This field must be filled in if the associated business schedule either follows the (Merlin) switch's night service status or specifies day service hours. |
| Night Service Mailbox |
An existing mailbox extension |
Type the extension number of the automated attendant mailbox to be accessed during the period not otherwise specified in the business schedule. |
| Alternate Service Mailbox |
An existing mailbox extension |
The extension number of the automated attendant mailbox to be accessed during the alternate-service period given in the business schedule. This field must be filled in if the associated business schedule specifies alternate service hours. |
