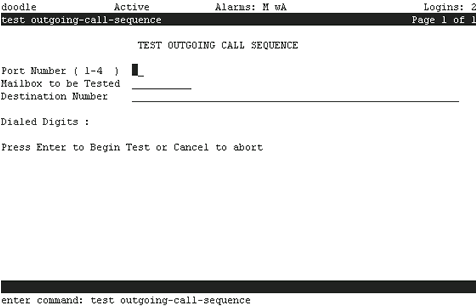

Test Outcalling Call Sequence Screen



Table: Field Definitions: Test Outgoing Call Sequence Screen

Field Name	Valid Input	Description
Port Number	Any port number less than or equal to the number of ports purchased	The field allows you to direct a test call to a specific voice port. It can be used to detect problems that arise from different restriction levels among voice ports. This field is optional. If no value is entered, any available port will be used.
Mailbox to be Tested	Any valid mailbox number	This field allows you to specify a subscriber's mailbox for the test. This subscriber's account code is included in the Dialed Digits: field. If no mailbox is entered in this field, the system uses the AMIS Account Code specified on the Outgoing Call Sequence screen.
Destination Number	A combination of: Any valid on-premises, local, long distance, or international telephone number Any additional commands, listed at right	A Destination Number must be specified for this test to run. In addition, to make the test compatible with AMIS analog networking and outcalling administration, the following can be included in the digit string: P (a short pause) Px where x is a1-digit number (the specified number of short pauses) asterisk (*) at the beginning of a string pound sign (#) at the beginning of a string asterisk (*) elsewhere in the string, indicates a short pause asterisk and pound (*#), indicates a pound sign required in the sequence two asterisks and pound (**#), indicates a short pause followed by #
Dialed Digits:	Display only	The digits and pauses to be tested. The system displays this field after you press Enter to begin the test.
