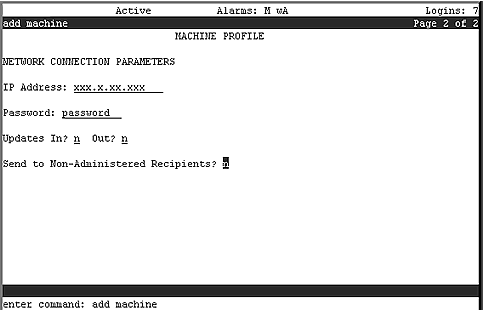

Table: Field Definitions; Remote Machine Profile Screen,
Page 2
|
Field
|
Valid Input
|
Description
|
| IP Address
|
Four decimal numbers written in dotted format:
each number needs to be in the range 0 to 255. For example, 135.9.52.45.
|
The IP address that is used when AUDIX connects to the remote machine
to establish a call for digital networking. |
| Password |
From 5 to 10 alphanumeric characters; can include dashes or underscores |
The password sent to the remote machine when establishing a connection.
|
|
Updates:
In?
|
y= yes
n = no
|
Enter y if the local system accepts
updated database information from the remote system (the Updates
In field must also be set to y on the local Machine
Profile screen).
Set to y only after testing the network end
to end during initial administration.
|
|
Updates:
Out?
|
y= yes
n = no
|
Enter y if the local system sends updated
database information to the remote system (the Updates
Out field must also be set to y on the local Machine
Profile screen).
Set to y only after testing the network end
to end during initial administration.
|
Send to Non-
Administered Recipients?
|
y= yes
n = no
|
Enter y if the system attempts to deliver
messages to nonadministered remote recipients.
Enter n if messages cannot be sent to nonadministered
recipients.
|
